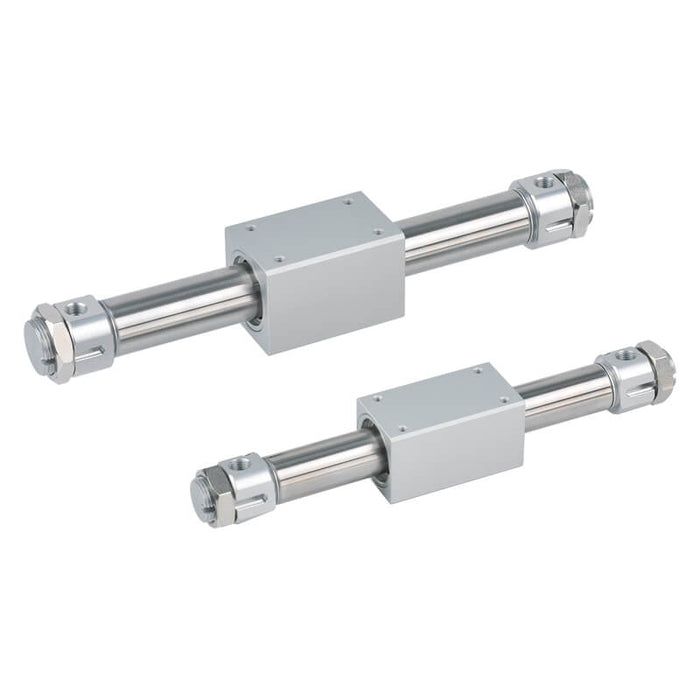

Mindman MCRPM series

Mindman MCRPM-20 Magnetically Coupled Rodless Cylinder, ø20 mm Bore

SKU MCRPM-20-(1-100)-NPT
by Mindman
$239.46 - $383.87
$239.46
$239.46 - $383.87
$239.46
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MCRPM series rodless cylinder, ø20 mm bore.

Stroke: available from 1 to 1000 mm. Pick the stroke range, then enter the exact stroke you need in the Required stroke box – it is added to your order and completes the Mindman ordering code (MCRPM-20-[stroke][M-A / -A]-[thread]; the SKU shows the stroke range in brackets). Price is the Mindman list price for the longest stroke in the selected range.

Magnet is only available with the adjustable air cushion (M-A), ø20–ø40. ø10 and ø15 have M5×0.8 ports.

Mounting brackets, rod-end connectors and sensor switches are sold separately.

Specifications

Acting type Double acting
Tube I.D.(mm) 10, 15, 20, 25, 32, 40
Port size 10, 15:M5×0.8, 20~32: Rc1/8, 40:Rc1/4
Medium Air
Operating pressure range 0.18~0.7 MPa
Ambient Temperature -5℃ ~ +60℃ (No freezing)
Lubrication Without lubrication
Available speed range Standard grease: 100~500 mm/sec (※1); Slow motion grease: 50~100 mm/sec (※1,2)
Holding force 10: 53.9 N, 15: 137 N, 20: 231 N, 25: 363 N, 32: 588 N, 40: 922 N
Sensor switch RDC(V), RQC(V), RDFE(V)
Remark ※1. The cylinder must be connected to a speed controller and graduallyadjusted from fully closed to achieve the desired operating speed within the designed range.; ※2. Between the speed range limit the actuator stroke must not exceed to 2m/minute.
Series Mindman MCRPM
