Mindman MCRPLS series

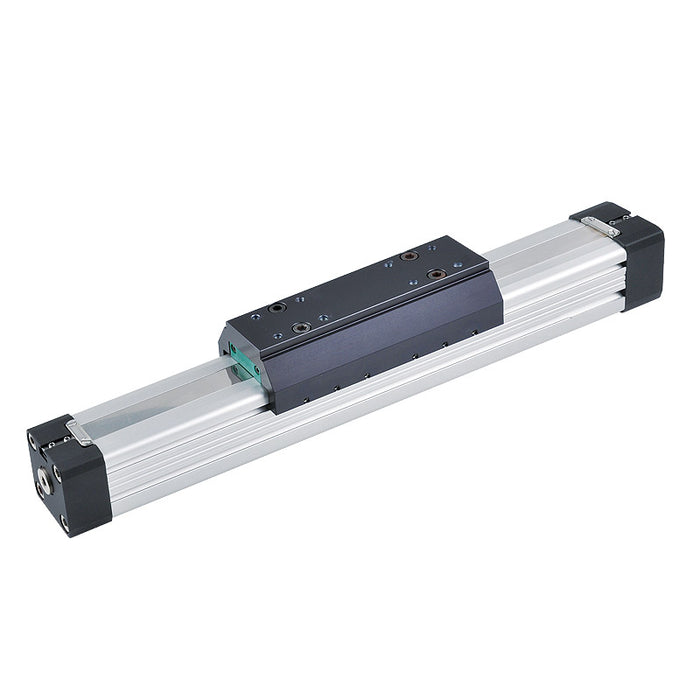

Mindman MCRPLS-90-40 Rodless Slide Cylinder, ø40 mm Bore

SKU MCRPLS-90-40-(0100-0100)
by Mindman
$2,995.60 - $4,362.71
$2,995.60
$2,995.60 - $4,362.71
$2,995.60
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MCRPLS series rodless cylinder, ø40 mm bore.

Stroke: available from 100 to 2000 mm. Pick the stroke range, then enter the exact stroke you need in the Required stroke box – it is added to your order and completes the Mindman ordering code (MCRPLS-90[V]-40-[stroke, 4 digits]-[S]; the SKU shows the stroke range in brackets). Price is the Mindman list price for the longest stroke in the selected range.

Stroke is ordered in 1 mm steps (4-digit code). Strokes over 2000 mm (up to 5700 mm): contact us.

Mounting brackets, rod-end connectors and sensor switches are sold separately.

Specifications

Acting type Double acting
Tube I.D. (mm) 32, 40, 50, 63
Port size 32, 40, 50: G1/4, 63: G3/8
No. of port 3
Medium Air
Operating pressure range 0.05 ~ 0.8 MPa
Ambient Temperature －10℃ ~ +80℃ (No freezing)
Lubrication With or Without lubrication
Cushion With adjustable cushion at both ends
Stroke range (※) 100~2000 mm
Sensor switch RNI, RPI, RCAL
Sensor switch holder HPL
Remark ※1. Minimum stroke unit 1mm.; ※2. The tube isn't airtight, so the cylinder is allowed little leakage.; Before the cylinder is sale, it has passed the standard of leakage test.
Series Mindman MCRPLS
