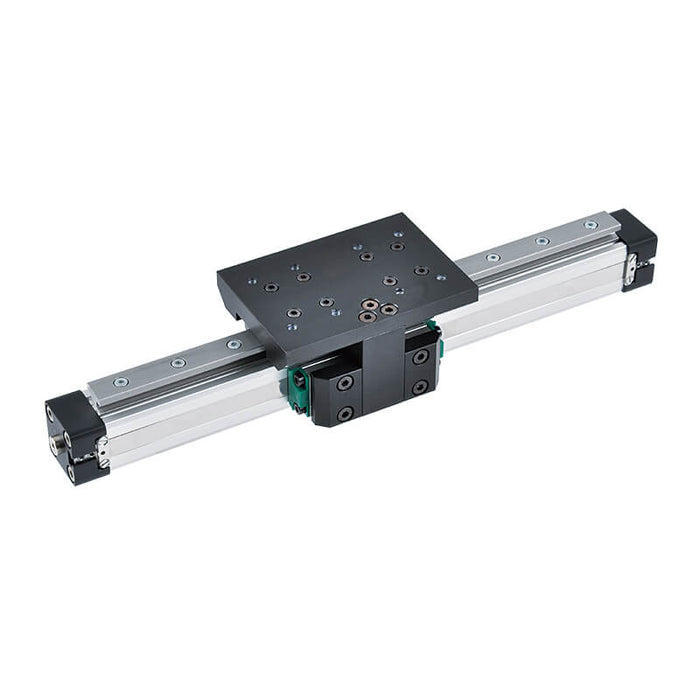

Mindman MCRPLK2 series

Mindman MCRPLK2-16 Rodless Cylinder with Guide, ø16 mm Bore

SKU MCRPLK2-16-(0100-0100)
by Mindman
$675.89 - $1,136.86
$675.89
$675.89 - $1,136.86
$675.89
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MCRPLK2 series rodless cylinder, ø16 mm bore.

Stroke: available from 100 to 1000 mm. Pick the stroke range, then enter the exact stroke you need in the Required stroke box – it is added to your order and completes the Mindman ordering code (MCRPLK2[-D]-16-[stroke, 4 digits]-[S]; the SKU shows the stroke range in brackets). Price is the Mindman list price for the longest stroke in the selected range.

Stroke is ordered in 1 mm steps (4-digit code, e.g. 0850); max 3600 mm (over 2000 mm: contact us). Shock-absorber sets and Viton seals on request.

Mounting brackets, rod-end connectors and sensor switches are sold separately.

Specifications

Acting type Double acting
Tube I.D. (mm) 16, 25, 32, 40
Port size M5, G1/8, G1/4
No. of port 3
Medium Air
Operating pressure range 0.1~0.78 MPa
Stroke range (※) φ16：100~2950 mm / φ25~40：100~3600 mm
Ambient Temperature -10℃ ~ +80℃ (No freezing)
Lubrication With or Without lubrication
Cushion With adjustable cushion at both ends
Sensor Switch RDT, RQT
Sensor Switch Holder HPL2
Remark ※1. In increments of 1mm.; ※2. The tube isn't airtight, so the cylinder is allowed little leakage.; Before the cylinder is sale, it has passed the standard of leakage test.
Series Mindman MCRPLK2
