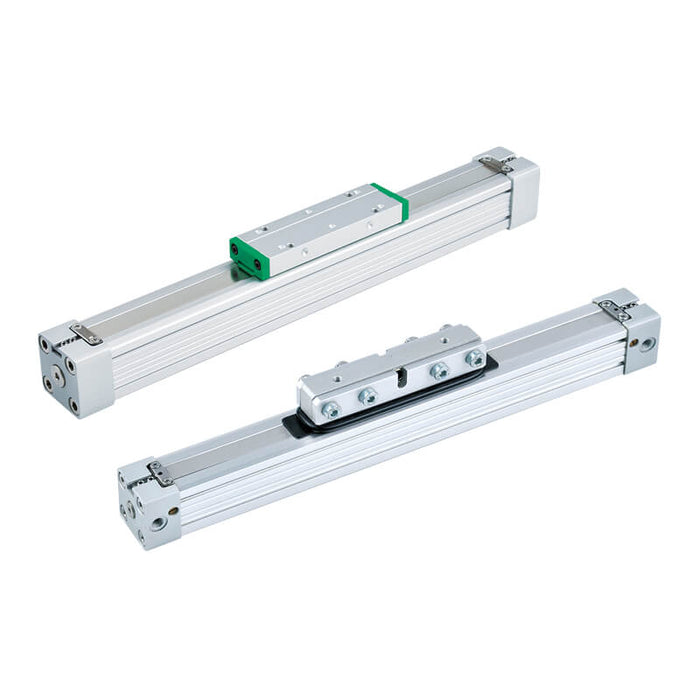

Mindman MCRPL2 series

Mindman MCRPL2-90-16 Rodless Cylinder, ø16 mm Bore

SKU MCRPL2-90-16-(0100-0100)
by Mindman
$420.16 - $735.44
$420.16
$420.16 - $735.44
$420.16
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MCRPL2 series rodless cylinder, ø16 mm bore.

Stroke: available from 100 to 1000 mm. Pick the stroke range, then enter the exact stroke you need in the Required stroke box – it is added to your order and completes the Mindman ordering code (MCRPL2-90[V]-16-[stroke, 4 digits]-[S]; the SKU shows the stroke range in brackets). Price is the Mindman list price for the longest stroke in the selected range.

Stroke is ordered in 1 mm steps (4-digit code, e.g. 0850). ø16 has M5×0.8 ports.

Mounting brackets, rod-end connectors and sensor switches are sold separately.

Specifications

Acting type Double acting
Tube I.D.(mm) MCRPL2: 16,25,32,40 / MCRPLF2: 16,25,32,40,50,63
Port size MCRPL2: M5~G1/4 / MCRPLF2: M5~G3/8
No. of port 3
Medium Air
Operating pressure range 0.1~0.78 MPa
Stroke range (※1) φ16：100~3000 mm / φ25~63：100~5600 mm
Ambient Temperature -10℃ ~ +80℃ (No freezing)
Lubrication With or Without lubrication
Cushion With adjustable cushion at both ends
Sensor Switch RDT, RQT
Sensor Switch Holder HPL2
Remark ※1: Minimum stroke unit 1mm.; ※2: The tube isn't airtight, so the cylinder is allowed little leakage.; Before the cylinder is sale, it has passed the standard of leakage test.
Series Mindman MCRPL2
