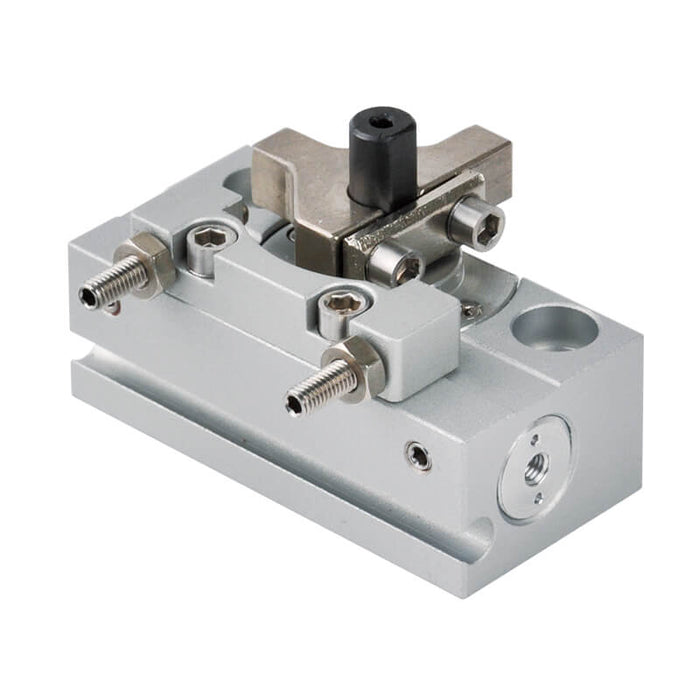

Mindman MCRJ-S series

Mindman MCRJ-S-8 Mini Rotary Actuator, ø8 mm Bore

SKU MCRJ-S-8-90
by Mindman
$188.24 - $192.12
$188.24
$188.24 - $192.12
$188.24
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MCRJ-S series mini rotary actuator with external cushion, ø8 mm bore.

Select the options below; the full Mindman ordering code is shown as the SKU (MCRJ-S-8-[angle][-E]).

Magnet is standard (sensor-ready).

Price is the Mindman list price.

Specifications

Bore size φ6, φ8
Port size M3×0.5
Medium Air (Non-lube)
Rotation 90°, 180°
Operating pressure range 0.15~0.7 MPa
Ambient temperature 0~＋60℃
Angle adjustment range Each rotation end ±5°
Sensor switch RDC(V), RQC(V), RDFE(V)
Weight 90°: 48g(φ6), 71g(φ8), 180°: 54g(φ6), 82g(φ8)
Series Mindman MCRJ-S
