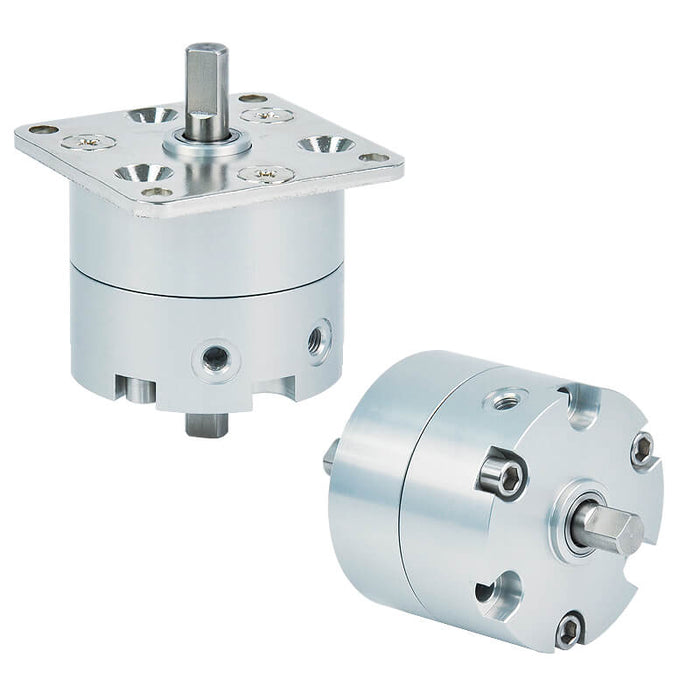

Mindman MCRC series

Mindman MCRC-30 Rotary Actuator, Size 30

SKU MCRC-30W-90
by Mindman
$121.51 - $370.80
$122.05
$121.51 - $370.80
$122.05
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MCRC series rotary actuator, size 30.

Select the options below; the full Mindman ordering code is shown as the SKU (MCRC-30[W/S]-[rotation]-[M][A]).

Price is the Mindman list price.

Specifications

Acting type Double acting
Size 20, 30
Port size M5×0.8
Rotation 90°, 180°, 270°
Acting angle tolerance 0~+4°
Medium Air (Non-lube)
Max. operating pressure 0.7 MPa, 1 MPa
Min. operating pressure 0.15 MPa
Proof pressure 1.05 MPa, 1.5 MPa
Ambient temperature +5~+60°C
Allowable kinetic energy Non-adj: 0.003J, 0.02J; Angel adj: 0.0004J, 0.015J
Load Radial: 25, 30N; Axial: 20, 25N
Rotation time adjustment range 0.03~0.3, 0.04~0.3 (※)
Volume 90°: A port: 3.5 mm3, 8.4 mm3, B port: 4.8mm3, 11.3 mm3; 180°: 5.9 mm3, 14.9 mm3; 270°: 7.7 mm3, 19.6 mm3
Sensor switch (for 30 size) RDC(V), RQC(V), RDFE(V)
Weight 103~200 g
Remark ※ When the operation speed is lower than the lower speed limit, the rod may jitter or stop. Please use the product in the range as table shown.
Series Mindman MCRC
