Mindman MCRB series

Mindman MCRB-25 Rotary Actuator, ø25 mm Bore

SKU MCRB-25-NPT
by Mindman
$425.98 - $599.01
$425.98
$425.98 - $599.01
$425.98
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

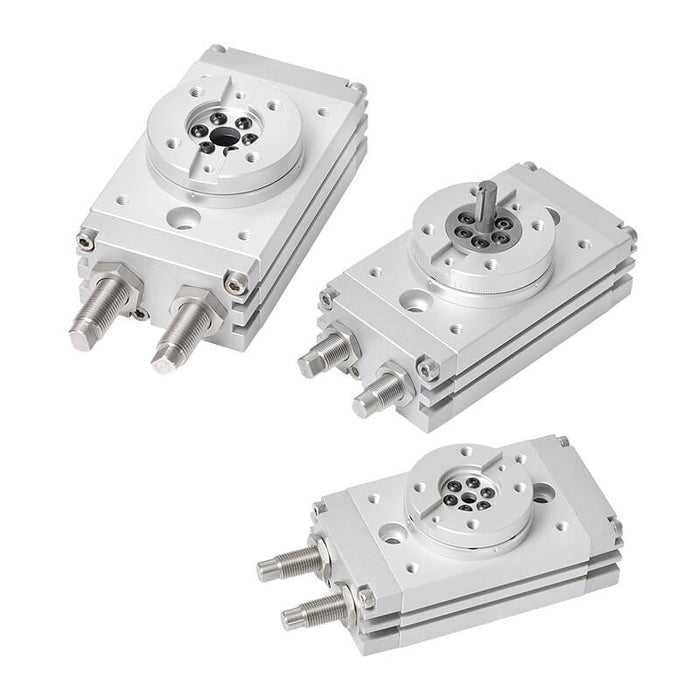

Mindman MCRB series rotary actuator, ø25 mm bore.

Select the options below; the full Mindman ordering code is shown as the SKU (MCRB-25[R]-[FR]-[thread]).

Magnet is standard (sensor-ready).

Price is the Mindman list price.

Specifications

Acting type Double acting
Bore size 16, 20, 25, 32
Port size Rc1/8
Medium Air
Operating pressure range 0.1~1 MPa
Proof pressure 1.5 MPa
Ambient temperature －5~＋60℃ (No freezing)
Lubrication Not required
Cushion NBR spacer
Stable rotation time 0.2~1.0 s/90°
Allowable kinetic energy 0.007J, 0.040J, 0.081J, 0.32J
Sensor switch RCD
Weight 0.7~3.07 kg
Remark * The shock absorber is expendable. Replace when damping performance decrease.
Series Mindman MCRB
