Mindman MCRA series

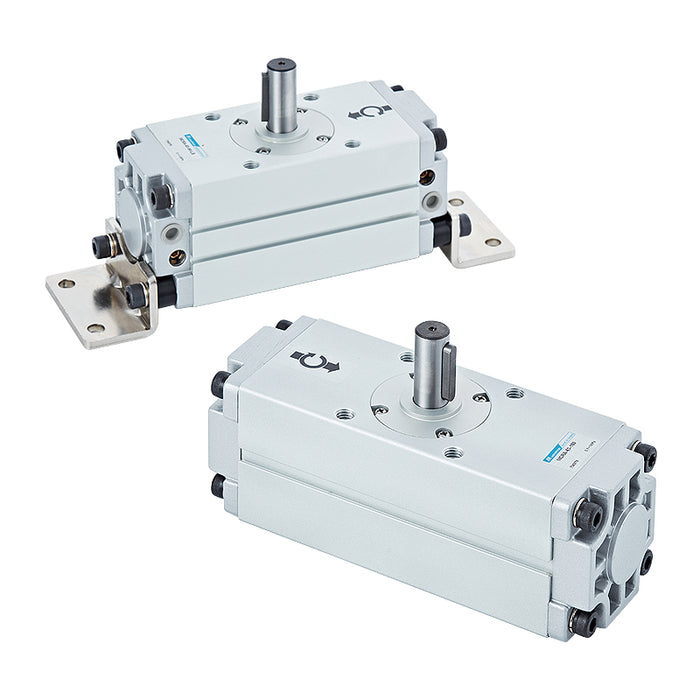

Mindman MCRA-63 Rack & Pinion Rotary Actuator, ø63 mm Bore

SKU MCRA-63-90-NPT
by Mindman
$409.15 - $444.27
$409.15
$409.15 - $444.27
$409.15
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MCRA series rack-and-pinion rotary actuator, ø63 mm bore.

Select the options below; the full Mindman ordering code is shown as the SKU (MCRA-63-[angle]-[LB]-[thread]).

Magnet is standard (sensor-ready).

Price is the Mindman list price.

Specifications

Acting type Double acting
Tube I.D. (mm) 63
Port size Rc1/8
Medium Air
Operating pressure range 0.1~1 MPa
Proof pressure 1.5 MPa
Ambient temperature －5~＋60℃ (No freezing)
Acting angle tolerance 0~＋4°
Lubrication Not required
Cushion Air cushion
Allowable kinetic energy 1.5J (air cushion)
Sensor switch RCE, RCE1, RDEP
Weight 90° (2.7 kg),180° (3.1 kg), LB (0.4 kg)
Series Mindman MCRA
