Mindman MCQV series

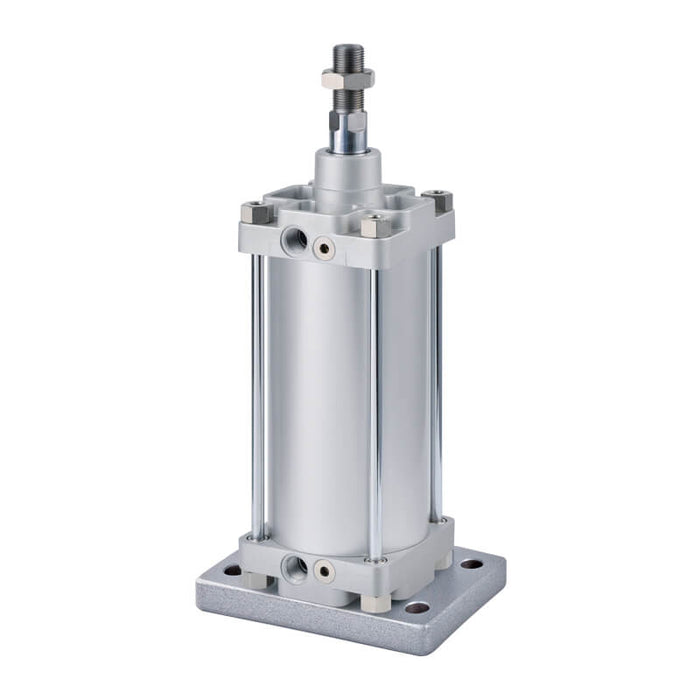

Mindman MCQV-11-160 ISO 6431 Pneumatic Cylinder, ø160 mm Bore, Double Acting, Male Rod Thread

SKU MCQV-11-160-(1-50)
by Mindman
$575.47 - $1,331.19
$575.47
$575.47 - $1,331.19
$575.47
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MCQV series iso 6431 pneumatic cylinder, ø160 mm bore, double acting, male rod thread.

Stroke: available from 1 to 1000 mm. Pick the stroke range, then enter the exact stroke you need in the Required stroke box – it is added to your order and completes the Mindman ordering code (MCQV-11-160-[stroke][M]; the SKU shows the stroke range in brackets). Price is the Mindman list price for the longest stroke in the selected range.

Standard ports are G (BSPP) thread; Rc or NPT ports are available on request – contact us.

With magnet and TA/TB trunnion mounting, Mindman adds the suffix “T” to the ordering code.

Mounting brackets, rod-end connectors and sensor switches are sold separately.

Specifications

Tube I.D. (mm) 125, 160, 200
Medium Air
Operating pressure range 0.05~1 MPa
Proof pressure 1.5 MPa
Ambient temperature －5~＋60℃ (No freezing)
Available speed range 50~500 mm/sec
Sensor switch RDC(V), RQC(V), RDT, RQT, RCA
Sensor switch holder R*C(V): DT7-3; R*T: DT-3; RCA: HV4, PM16, HA5
Series Mindman MCQV
