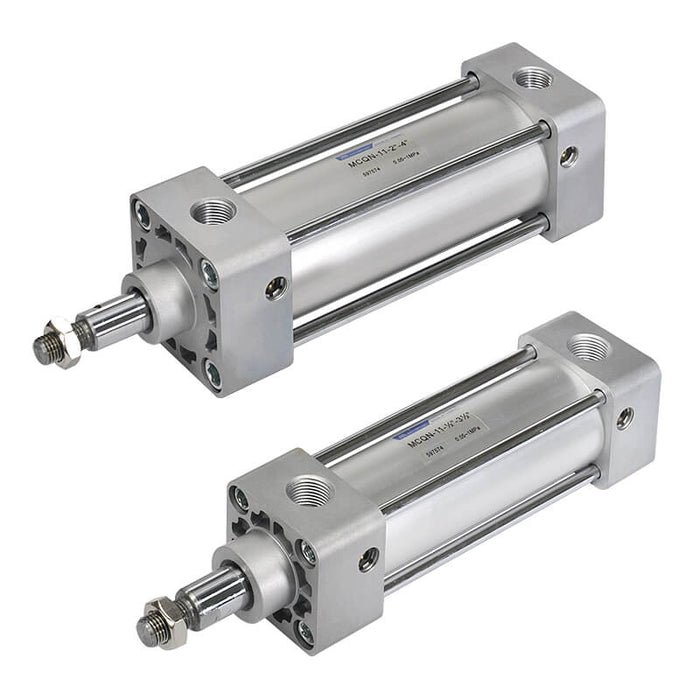

Mindman MCQN series

Mindman MCQN-11-80 NFPA Standard Cylinder (Inch), 3-1/4" Bore, Double Acting, Male Rod Thread

SKU MCQN-11-80-(0025-0100)
by Mindman
$137.37 - $268.35
$137.37
$137.37 - $268.35
$137.37
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MCQN series nfpa standard cylinder (inch), 3-1/4" bore, double acting, male rod thread.

Stroke: available from 0.25 to 24 in. Pick the stroke range, then enter the exact stroke you need in the Required stroke box – it is added to your order and completes the Mindman ordering code (MCQN-11-80-[stroke: 4 digits, e.g. 0425 = 4.25 in][M]; the SKU shows the stroke range in brackets). Price is the Mindman list price for the longest stroke in the selected range.

Mounting brackets, rod-end connectors and sensor switches are sold separately.

Specifications

Tube I.D. (inch) 1-1/2”, 2", 2-1/2", 3-1/4", 4”
Port size NPT3/8, NPT1/2
Medium Air
Max. operating pressure 1 MPa
Min. operating pressure 0.05 MPa
Proof pressure 1.5 MPa
Ambient temperature －5~＋60℃ (No freezing)
Available speed range 50~500 mm/sec
Sensor switch RDC(V), RQC(V), RCA
Sensor switch holder R*C(V): DT7-1, DT7-2; RCA: HV1, HV2, HV3
Series Mindman MCQN
