Mindman MCQA-AH series

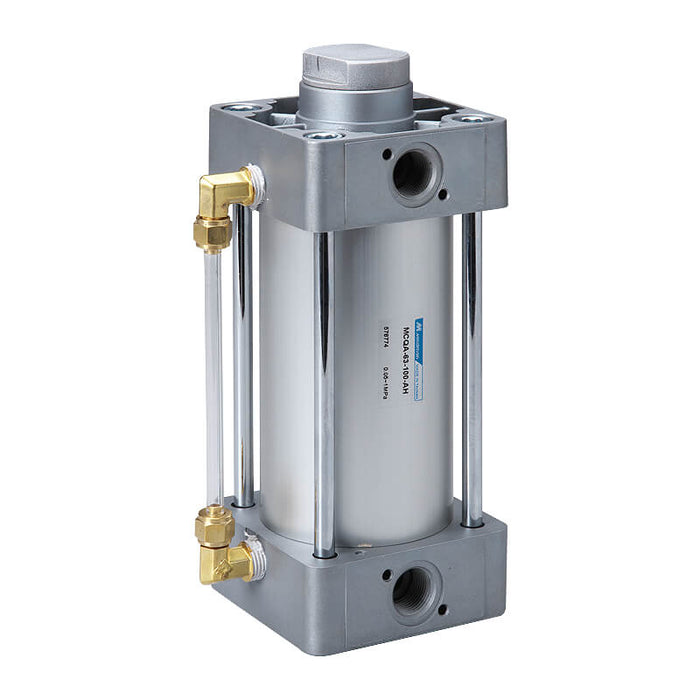

Mindman MCQA-00-40 Air/Oil Converter, ø40 mm Bore, No Acting (Converter)

SKU MCQA-00-40-(1-50)-AH
by Mindman
$50.21 - $135.53
$50.21
$50.21 - $135.53
$50.21
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MCQA series air/oil converter, ø40 mm bore, no acting (converter).

Stroke: available from 1 to 1000 mm. Pick the stroke range, then enter the exact stroke you need in the Required stroke box – it is added to your order and completes the Mindman ordering code (MCQA-00-40-[length]-AH; the SKU shows the stroke range in brackets). Price is the Mindman list price for the longest stroke in the selected range.

Stroke = converter length.

Mounting brackets, rod-end connectors and sensor switches are sold separately.

Specifications

Tube I.D. (mm) 40, 50, 63, 80, 100, 125, 150
Medium ISO VG32 EQUIVALENT
Operating pressure range 0.05~1 MPa
Proof pressure 1.5 MPa
Ambient temperature －5~＋60℃ (No freezing)
Available speed range 50~500 mm/sec
Series Mindman MCQA-AH
