Mindman MCMJPB series

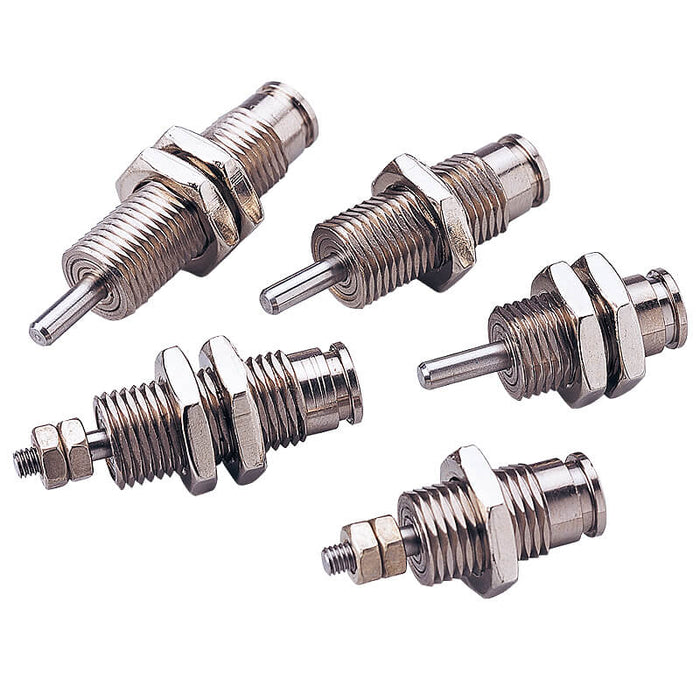

Mindman MCMJPB/S-10/15-15 Pen Cylinder, Single Acting Spring Return, ø15 mm Bore

SKU MCMJPB-10-15-5
by Mindman
$29.34 - $31.80
$29.34
$29.34 - $31.80
$29.34
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MCMJPB/S series pen cylinder, single acting spring return, ø15 mm bore.

Choose the stroke; the full Mindman ordering code is shown as the SKU (MCMJP[B/S]-[10/15]-15-[stroke]).

Style 10: no rod thread. Style 15: male rod thread.

Mounting brackets, rod-end connectors and sensor switches are sold separately.

Specifications

Acting type Single acting
Tube I.D. (mm) 6, 10, 15
Medium Air
Max. operating pressure 0.7 MPa
Min. operating pressure φ 6：0.2 MPa, φ 10,15：0.15 MPa
Proof pressure 1 MPa
Ambient temperature －5~＋60℃ (No freezing)
Lubricator Not required
Available speed range 50~500 mm/sec
Max. allowable kinetic energy 0.003~0.019J
Series Mindman MCMJPB
