Mindman MCMJP series

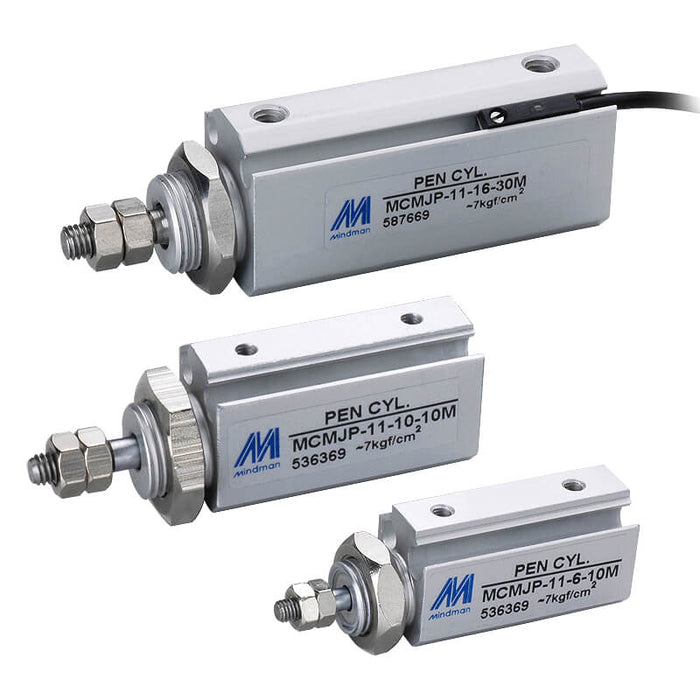

Mindman MCMJP-11-16 Pen Cylinder, ø16 mm Bore, Double Acting, Male Rod Thread

SKU MCMJP-11-16-(1-5)
by Mindman
$32.99 - $47.68
$32.99
$32.99 - $47.68
$32.99
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MCMJP series pen cylinder, ø16 mm bore, double acting, male rod thread.

Stroke: available from 1 to 45 mm. Pick the stroke range, then enter the exact stroke you need in the Required stroke box – it is added to your order and completes the Mindman ordering code (MCMJP-11-16-[stroke][M]; the SKU shows the stroke range in brackets). Price is the Mindman list price for the longest stroke in the selected range.

Mounting brackets, rod-end connectors and sensor switches are sold separately.

Specifications

Acting type Double acting
Tube I.D. (mm) 6, 10, 16
Port size M3×0.5, M5×0.8
Medium Air
Max. operating pressure 0.7 MPa
Min. operating pressure 0.06~0.12 MPa
Proof pressure 1 MPa
Ambient temperature －5~＋60℃ (No freezing)
Lubricator Not required
Available speed range 50~500 mm/sec
Max. allowable kinetic energy 0.012~0.05J
Sensor switch RDC(V), RQC(V), RDFE(V), RDGV
Series Mindman MCMJP
