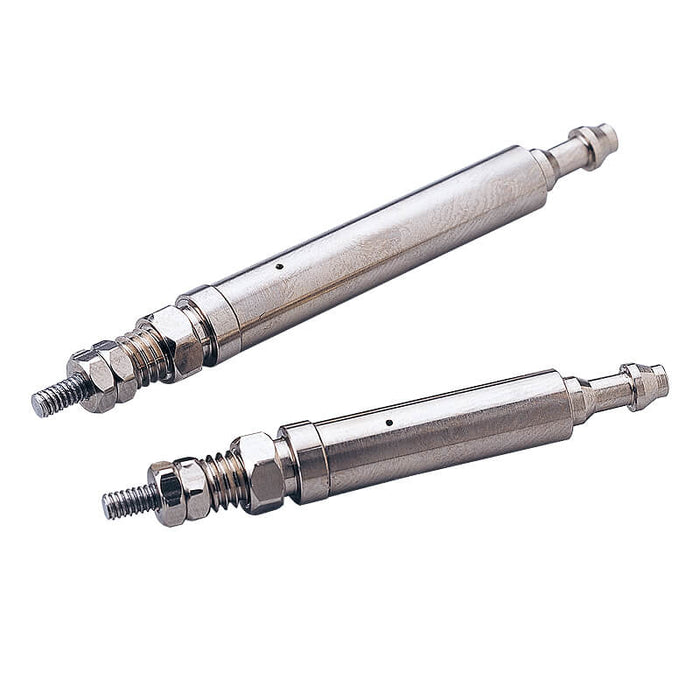

Mindman MCMJ1 series

Mindman MCMJ1-15-4 Pen Cylinder, ø4 mm Bore, Single Acting, Spring Return, Male Rod Thread

SKU MCMJ1-15-4-5
by Mindman
$17.72 - $21.27
$17.72
$17.72 - $21.27
$17.72
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MCMJ1 series pen cylinder, ø4 mm bore, single acting, spring return, male rod thread.

Choose the stroke; the full Mindman ordering code is shown as the SKU (MCMJ1-15-4-[stroke]).

Mounting brackets, rod-end connectors and sensor switches are sold separately.

Specifications

Acting type Single acting
Tube I.D. (mm) 4
Medium Air
Max. operating pressure 0.7 MPa
Min. operating pressure 0.3 MPa
Proof pressure 1 MPa
Ambient temperature －5~＋60℃ (No freezing)
Lubricator Not required
Available speed range 50~500 mm/sec
Max. allowable kinetic energy 0.004J
Series Mindman MCMJ1
