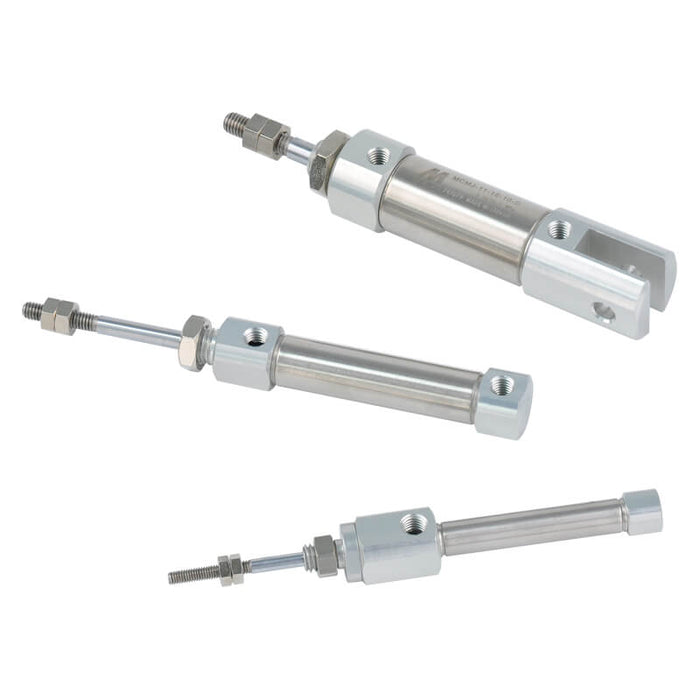

Mindman MCMJ series

Mindman MCMJ-11-6 Pen Cylinder, ø6 mm Bore, Double Acting, Male Rod Thread

SKU MCMJ-11-6-(1-15)-R
by Mindman
$25.38 - $30.65
$25.38
$25.38 - $30.65
$25.38
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MCMJ series pen cylinder, ø6 mm bore, double acting, male rod thread.

Stroke: available from 1 to 60 mm. Pick the stroke range, then enter the exact stroke you need in the Required stroke box – it is added to your order and completes the Mindman ordering code (MCMJ-11-6-[stroke][M]-[R/B/D]; the SKU shows the stroke range in brackets). Price is the Mindman list price for the longest stroke in the selected range.

Mounting brackets, rod-end connectors and sensor switches are sold separately.

Specifications

Tube I.D. (mm) 6, 10, 16
Port size M5×0.8
Medium Air
Max. operating pressure 0.7 MPa
Min. operating pressure 0.06~0.25 MPa
Proof pressure 1 MPa
Ambient temperature －5~＋60℃ (No freezing)
Lubricator Not required
Available speed range 50~500 mm/sec
Max. allowable kinetic energy 0.012~0.09J
Sensor switch RDC, RQC, RCM
Sensor switch band R*C: BKC-1 (Not for R*CV angle cable); RCM: BM6~BM16
Series Mindman MCMJ
