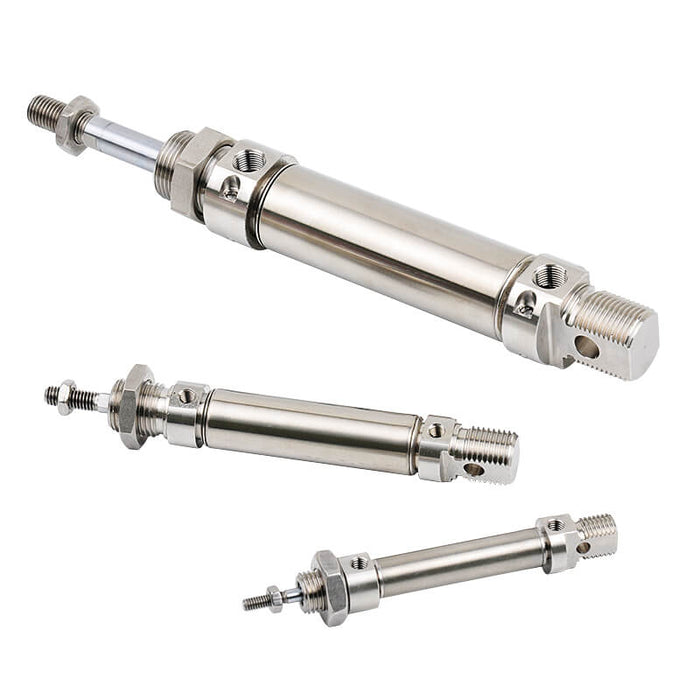

Mindman MCMIS series

Mindman MCMIS-11-16 Stainless ISO 6432 Mini Cylinder, ø16 mm Bore, Double Acting, Male Rod Thread

SKU MCMIS-11-16-(1-25)
by Mindman
$138.26 - $171.09
$138.26
$138.26 - $171.09
$138.26
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MCMIS series stainless iso 6432 mini cylinder, ø16 mm bore, double acting, male rod thread.

Stroke: available from 1 to 300 mm. Pick the stroke range, then enter the exact stroke you need in the Required stroke box – it is added to your order and completes the Mindman ordering code (MCMIS-11-16-[stroke][-A]; the SKU shows the stroke range in brackets). Price is the Mindman list price for the longest stroke in the selected range.

Magnet is standard (sensor-ready).

Mounting brackets, rod-end connectors and sensor switches are sold separately.

Specifications

Tube I.D. (mm) 10, 12, 16, 20, 25
Port size M5×0.8, Rc1/8
Medium Air
Max. operating perssure 1.0 MPa
Min. operating perssure 0.1, 0.08 MPa
Proof pressure 1 MPa
Available speed range 50~500mm/sec
Ambient temperature －35~＋80℃ (No freezing)
Lubricator Not required
Sensor switch RDC, RQC, RDT, RQT, RCM
Sensor switch (band) R*C: BKC-1 (Not for R*CV angle cable); R*T: BKT-1; RCM: BM10~BM25
Series Mindman MCMIS
