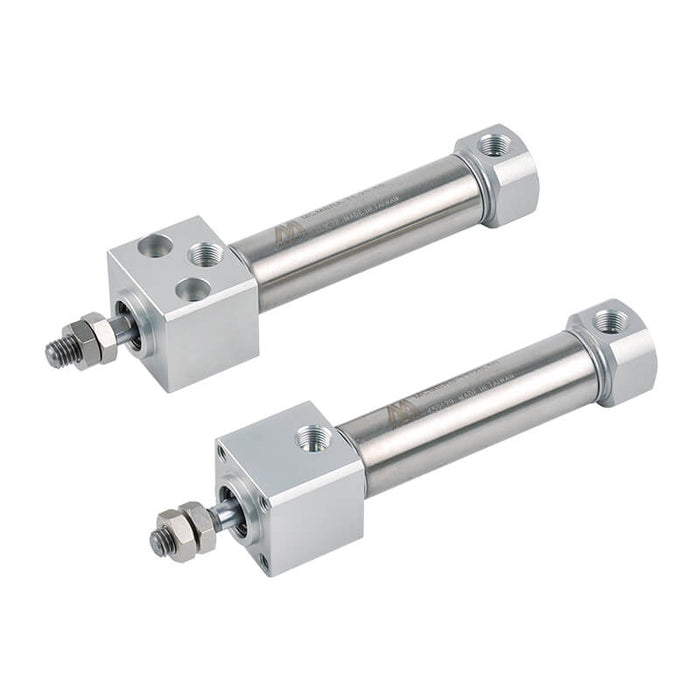

Mindman MCMBR series

Mindman MCMBR-11-40 Block-Mount Mini Cylinder, ø40 mm Bore, Double Acting, Male Rod Thread

SKU MCMBRA-11-40-(1-50)-NPT
by Mindman
$91.38 - $153.25
$91.38
$91.38 - $153.25
$91.38
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MCMBR series block-mount mini cylinder, ø40 mm bore, double acting, male rod thread.

Stroke: available from 1 to 300 mm. Pick the stroke range, then enter the exact stroke you need in the Required stroke box – it is added to your order and completes the Mindman ordering code (MCMBR[A/B]-11-40-[stroke][-A]-[thread]; the SKU shows the stroke range in brackets). Price is the Mindman list price for the longest stroke in the selected range.

Mounting brackets, rod-end connectors and sensor switches are sold separately.

Specifications

Tube I.D. (mm) 20, 25, 32, 40
Port size Rc1/8, Rc1/4
Medium Air
Max. operating pressure 1 MPa
Min. operating pressure 0.05 MPa
Proof pressure 1.5 MPa
Ambient temperature －5~＋60℃ (No freezing)
Lubricator Not required
Available speed range 50~750mm/sec
Max. allowable kinetic energy Cushion pad: 0.12~0.53 J; Cushion air: 0.14~0.59 J
Cushion with rubber cushion pad
Sensor switch RDC, RQC, RCM
Sensor switch band R*C: BKC-1 (Not for R*CV angle cable); RCM: BM20~BM40
Series Mindman MCMBR
