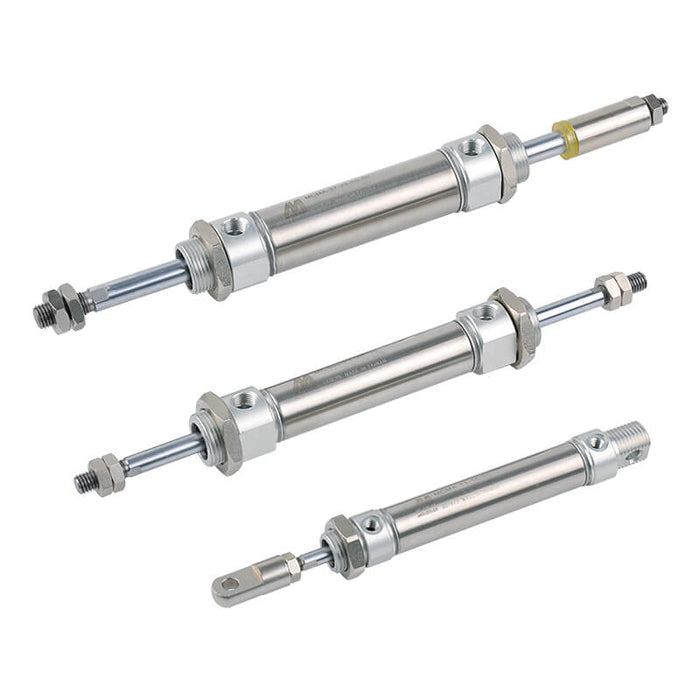

Mindman MCMA series

Mindman MCMA-13-20 Mini Round Cylinder, ø20 mm Bore, Single Acting, Spring Extend, Male Rod Thread

SKU MCMA-13-20-(1-25)-NPT
by Mindman
$52.74 - $93.48
$52.74
$52.74 - $93.48
$52.74
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MCMA series mini round cylinder, ø20 mm bore, single acting, spring extend, male rod thread.

Stroke: available from 1 to 150 mm. Pick the stroke range, then enter the exact stroke you need in the Required stroke box – it is added to your order and completes the Mindman ordering code (MCMA-13-20-[stroke][-A]-[thread]; the SKU shows the stroke range in brackets). Price is the Mindman list price for the longest stroke in the selected range.

Magnet is standard (sensor-ready).

ø16 bore has M5×0.8 ports; ø20–ø40 are offered in NPT, Rc or G.

Mounting brackets, rod-end connectors and sensor switches are sold separately.

Specifications

Tube I.D. (mm) 16, 20, 25, 32, 40
Port size M5×0.8, Rc1/8
Medium Air
Max. operating pressure 0.7 MPa
Min. operating pressure Double:0.06 MPa, Single:0.15 MPa
Proof pressure 1 MPa
Ambient temperature －5~＋60℃ (No freezing)
Lubricator Not required
Available speed range 50~750 mm/sec
Max. allowable kinetic energy Cushion pad 0.16~1.2J, Adjustable cushion 0.32~2.35J
Sensor switch RDC, RQC, RCM
Sensor switch band R*C: BKC-1 (Not for R*CV angle cable); RCM: BM16~BM40
Series Mindman MCMA
