Mindman MCKQI3 series

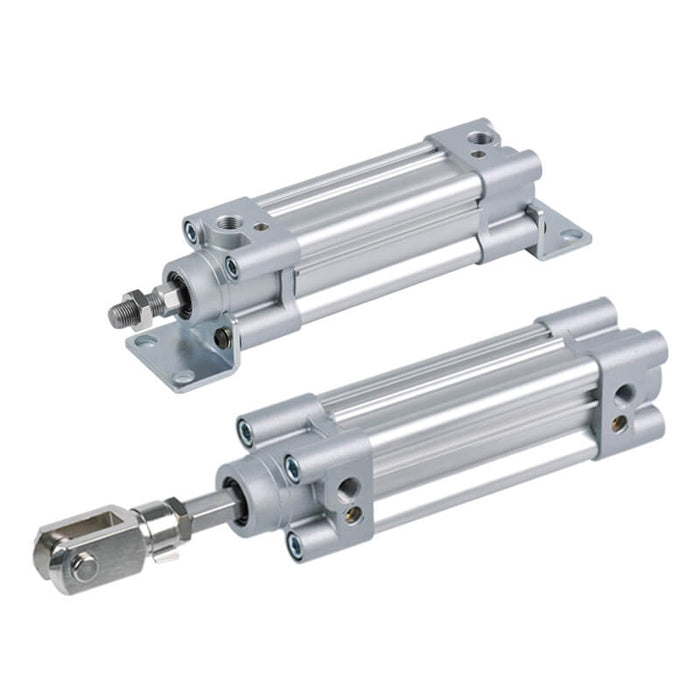

Mindman MCKQI3-11-32 ISO 15552 Non-Rotating Profile Cylinder, ø32 mm Bore, Double Acting, Male Rod Thread

SKU MCKQI3-11-32-(1-50)
by Mindman
$109.24 - $256.17
$109.24
$109.24 - $256.17
$109.24
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MCKQI3 series iso 15552 non-rotating profile cylinder, ø32 mm bore, double acting, male rod thread.

Stroke: available from 1 to 700 mm. Pick the stroke range, then enter the exact stroke you need in the Required stroke box – it is added to your order and completes the Mindman ordering code (MCKQI3-11-32-[stroke][M]; the SKU shows the stroke range in brackets). Price is the Mindman list price for the longest stroke in the selected range.

Standard ports are G (BSPP) thread; Rc or NPT ports are available on request – contact us.

With magnet and TA/TB trunnion mounting, Mindman adds the suffix “T” to the ordering code.

Mounting brackets, rod-end connectors and sensor switches are sold separately.

Specifications

Tube I.D. (mm) 32, 40 mm
Medium Air
Operating perssure range 0.05~1 MPa
Proof pressure 1.5 MPa
Ambient temperature －5℃~＋60℃ (No freezing)
Available speed range 50~500 mm/sec
Rod non-rotating accuracy ±0.5°
Allowable rotational torque 2.5 kgf-cm, 4.5 kgf-cm
Sensor switch RDT, RQT, RCI
Series Mindman MCKQI3
