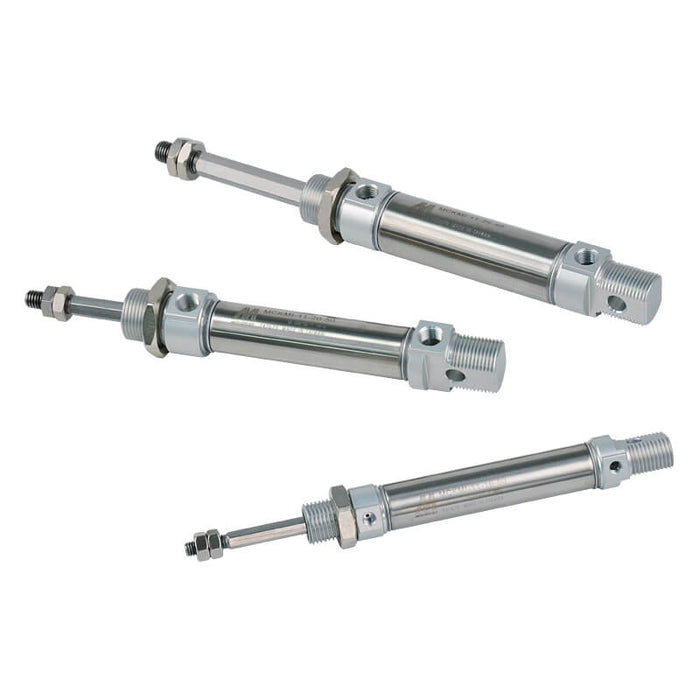

Mindman MCKMI series

Mindman MCKMI-11-25 ISO 6432 Non-Rotating Mini Cylinder, ø25 mm Bore, Double Acting, Male Rod Thread

SKU MCKMI-11-25-(1-25)
by Mindman
$65.82 - $107.24
$65.82
$65.82 - $107.24
$65.82
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MCKMI series iso 6432 non-rotating mini cylinder, ø25 mm bore, double acting, male rod thread.

Stroke: available from 1 to 300 mm. Pick the stroke range, then enter the exact stroke you need in the Required stroke box – it is added to your order and completes the Mindman ordering code (MCKMI-11-25-[stroke][-A]; the SKU shows the stroke range in brackets). Price is the Mindman list price for the longest stroke in the selected range.

Magnet is standard (sensor-ready).

Mounting brackets, rod-end connectors and sensor switches are sold separately.

Specifications

Tube I.D. (mm) 16, 20, 25
Port size M5×0.8, G1/8
Medium Air
Operating pressure 0.06~0.7 MPa
Proof pressure 1 MPa
Ambient temperature －5~＋60℃ (No freezing)
Lubricator Not required
Available speed range 50~750 mm/sec
Max. allowable kinetic energy Cushion pad 0.09, 0.27, 0.4J, Adjustable cushion ─, 0.66, 0.97J
Rod non-rotating accuracy ±1°, ±0.7°
Allowable rotational torque 0.4, 2.0, 2.5 kgf-cm
Sensor switch RDC, RQC, RDT, RQT, RCM
Sensor switch band R*C: BKC-1 (Not for R*CV angle cable); R*T: BKT-1; RCM: BM16~BM25
Series Mindman MCKMI
