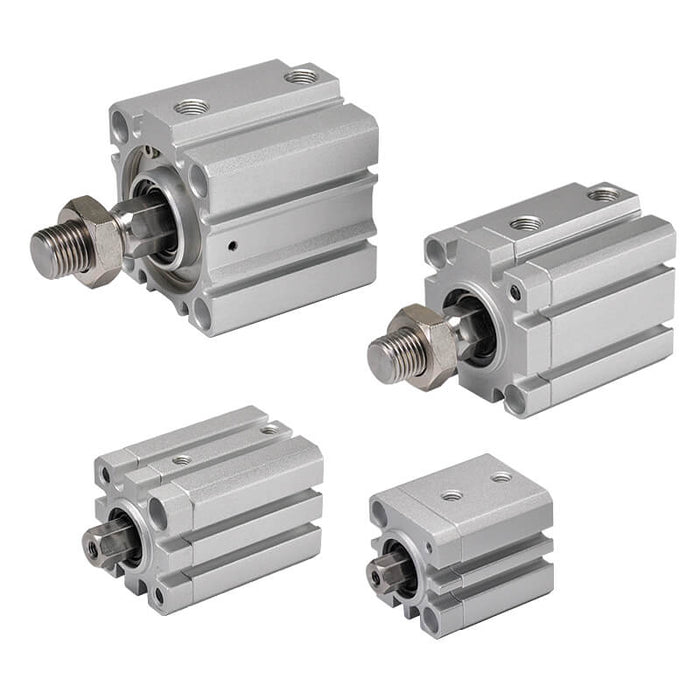

Mindman MCKJQ series

Mindman MCKJQ-12-12 Non-Rotating Compact Cylinder, ø12 mm Bore, Double Acting, Female Rod Thread

SKU MCKJQ-12-12-(1-5)
by Mindman
$51.88 - $57.76
$51.88
$51.88 - $57.76
$51.88
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MCKJQ series non-rotating compact cylinder, ø12 mm bore, double acting, female rod thread.

Stroke: available from 1 to 30 mm. Pick the stroke range, then enter the exact stroke you need in the Required stroke box – it is added to your order and completes the Mindman ordering code (MCKJQ-12-12-[stroke][M]; the SKU shows the stroke range in brackets). Price is the Mindman list price for the longest stroke in the selected range.

ø12–ø25 bores have M5×0.8 ports; ø32 and larger are offered in NPT, Rc or G.

Mounting brackets, rod-end connectors and sensor switches are sold separately.

Specifications

Acting type Double acting
Tube I.D. (mm) 12, 16, 20, 25, 32, 40
Port size M5×0.8, Rc1/8
Medium Air
Operating pressure range ø12、ø16：0.1 ~ 1 MPa; ø20、ø25：0.8 ~ 1 MPa; ø32、ø40：0.6 ~ 1 MPa
Proof pressure 1.5 MPa
Ambient temperature －5℃~＋60℃ (No freezing)
Available speed range 50~500 mm/sec
Rod non-rotating accuracy ±1°, ±0.7°, ±0.5°
Allowable rotational torque 0.4 ~ 4.5 kgf-cm
Sensor switch RCE, RCE1, RDEP
Remark The cylinder is allowed little leakage. Before the cylinder is sale, it has passed the standard of leakage test.
Series Mindman MCKJQ
