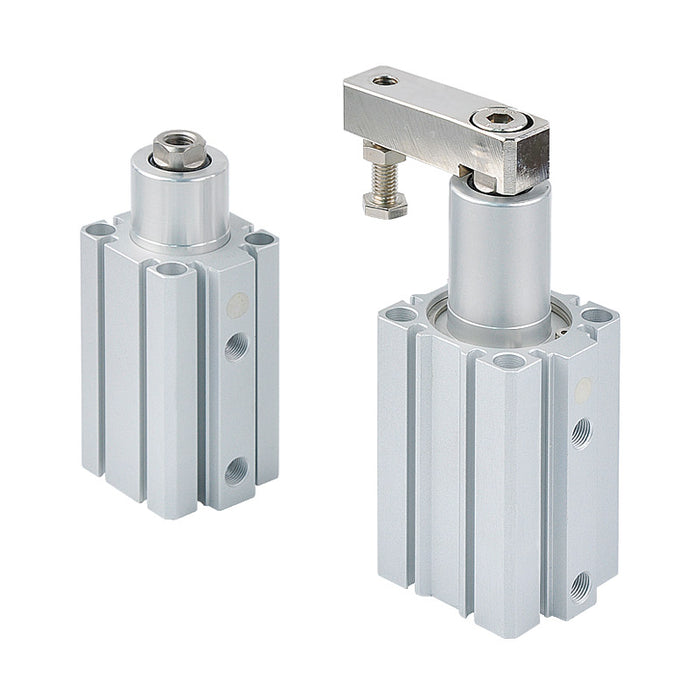

Mindman MCKC series

Mindman MCKC-12 Swing Clamp Cylinder, ø12 mm

SKU MCKC-12-10-L
by Mindman
$55.78 - $74.03
$69.99
$55.78 - $74.03
$69.99
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MCKC series pneumatic swing clamp cylinder, ø12 mm bore.

Select the options below; the full Mindman ordering code is shown as the SKU (MCKC-12-[clamp stroke]-[L/R][N]).

ø12–ø25 have M5×0.8 ports.

Price is the Mindman list price.

Specifications

Acting type Double acting
Tube I.D. (mm) 12, 16, 20, 25, 32, 40, 50, 63
Port size Rc(PT) M5×0.8, Rc1/8
Rotary angle 90°±10°
Rotary direction Left (L)、Right (R)
Rotary stroke 7.5mm, 9.5 mm, 15 mm
Clamp stroke 10, 20, 30, 50 mm (50 only for ø50, ø63)
Medium Air
Operating pressure range 0.1~1 MPa
Temperature range －5℃~＋60℃ (No freezing)
Available speed range (※1) 50~200 mm/s
Non-rotating; accuracy (※2) ±2°, ±1.3°, ±1.2°
Lubrication Not required
Sensor switch RDE, RCE, RCE1, RDEP
Remark *1. Keep the operating speed between 50~200mm/s with a speed conteoller. Please refer to moment of inertia. Adjust the speed gradually from state to prevent inner parts being damaged.; *2. Arm during clamping (Clamp part).
Series Mindman MCKC
