Mindman MCKB series

Mindman MCKB-40-25 Clamp Cylinder, ø40 mm, 25 mm Stroke

SKU MCKB-40-25-NPT
by Mindman
$210.65 - $219.76
$210.65
$210.65 - $219.76
$210.65
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

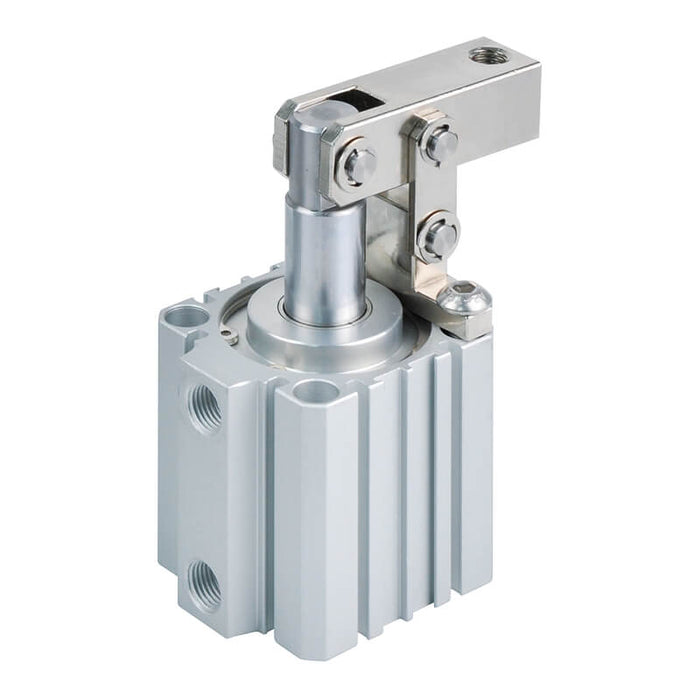

Mindman MCKB series clamp cylinder, ø40 mm bore, 25 mm stroke.

Select the options below; the full Mindman ordering code is shown as the SKU (MCKB-40-25[M]-[thread]).

Price is the Mindman list price.

Specifications

Acting type Double acting
Tube I.D. (mm) 25, 32, 40, 50, 63
Stroke (mm) 20, 25, 25, 30, 35
Port size M5×0.8, Rc1/8, Rc1/4
Operating fluid Air
Operating pressure range 0.1~1 MPa
Proof pressure 1.5 MPa
Ambient temperature －5~＋60℃ (No freezing)
Lubrication Cylinder:Not required, Lever:Grease
Available speed range 50~500 mm/sec
Sensor switch RCE, RCE1, RDEP (※1)
Weight (g) Without: 233, 411, 466, 832, 1111; Magnet: 270, 456, 578, 915, 1242
Remark ※1. RDEP is not suitable for ø63。
Series Mindman MCKB
