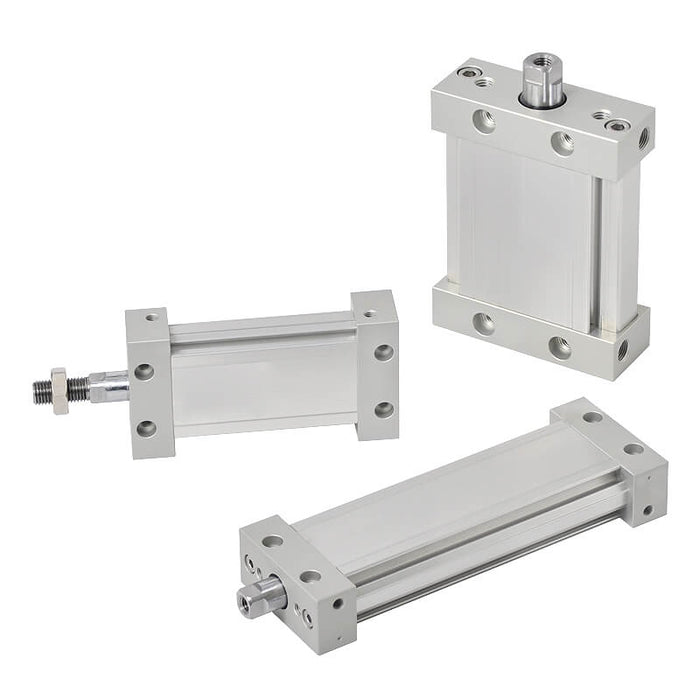

Mindman MCJU series

Mindman MCJU-21-40 Plate Cylinder, Non-Rotating Rod (Magnet Standard), ø40 mm Bore, Double Rod, Male Rod Thread

SKU MCJU-21-40-(1-10)-NPT
by Mindman
$167.65 - $233.84
$167.65
$167.65 - $233.84
$167.65
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MCJU series plate cylinder, non-rotating rod (magnet standard), ø40 mm bore, double rod, male rod thread.

Stroke: available from 1 to 300 mm. Pick the stroke range, then enter the exact stroke you need in the Required stroke box – it is added to your order and completes the Mindman ordering code (MCJU-21-40-[stroke]-[thread]; the SKU shows the stroke range in brackets). Price is the Mindman list price for the longest stroke in the selected range.

ø25 bore has M5×0.8 ports; ø32–ø63 are offered in NPT, Rc or G.

Mounting brackets, rod-end connectors and sensor switches are sold separately.

Specifications

Acting type Double acting
Tube I.D. (mm) 25, 32, 40, 50, 63
Port size 25: M5×0.8; 32, 40: Rc1/8; 50, 63: Rc1/4
Medium Air
Operating pressure range 0.05~0.7 MPa
Proof pressure 1.0 MPa
Ambient temperature －5℃~＋60℃ (No freezing)
Available speed range 50~500 mm/sec
Lubrication Without lubrication
Cushion Rubber bumper
Stroke length tolerance ＋0 ~ ＋1.5mm; (Stroke length tolerance does not include the amount of bumper change.)
Sensor switch RDC(V), RQC(V), RDFE(V), RDGV
Series Mindman MCJU
