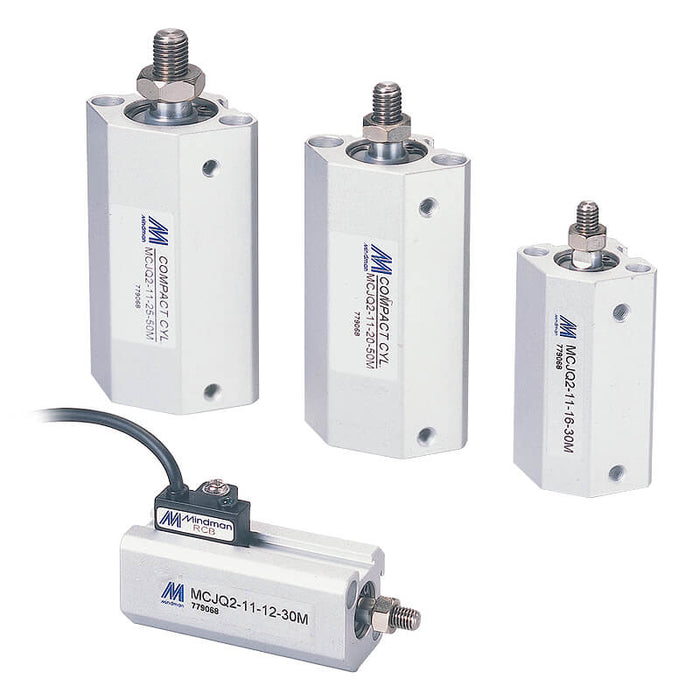

Mindman MCJQ2 series

Mindman MCJQ2-12-12 Compact Cylinder (Magnet Standard), ø12 mm Bore, Double Acting, Female Rod Thread

SKU MCJQ2-12-12-(1-5)M
by Mindman
$32.31 - $37.62
$32.31
$32.31 - $37.62
$32.31
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MCJQ2 series compact cylinder (magnet standard), ø12 mm bore, double acting, female rod thread.

Stroke: available from 1 to 30 mm. Pick the stroke range, then enter the exact stroke you need in the Required stroke box – it is added to your order and completes the Mindman ordering code (MCJQ2-12-12-[stroke]M; the SKU shows the stroke range in brackets). Price is the Mindman list price for the longest stroke in the selected range.

Mounting brackets, rod-end connectors and sensor switches are sold separately.

Specifications

Acting type Double acting
Tube I.D. (mm) 12, 16, 20, 25
Port size M5×0.8
Operating pressure range 12,16: 0.07~1 MPa, 20,25: 0.05~1 MPa
Proof pressure 1.5 MPa
Ambient temperature －5℃~＋60℃ (No freezing)
Available speed range 50~500 mm/sec
Sensor switch holder RCB
Series Mindman MCJQ2
