Mindman MCJQ2 series

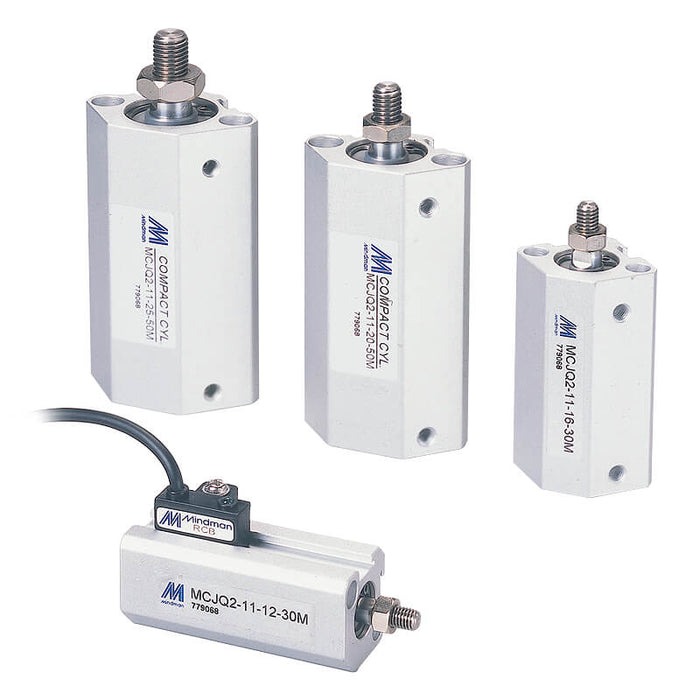

Mindman MCJQ2-11-25 Compact Cylinder (Magnet Standard), ø25 mm Bore, Double Acting, Male Rod Thread

SKU MCJQ2-11-25-(1-5)M
by Mindman
$48.45 - $61.84
$48.45
$48.45 - $61.84
$48.45
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MCJQ2 series compact cylinder (magnet standard), ø25 mm bore, double acting, male rod thread.

Stroke: available from 1 to 50 mm. Pick the stroke range, then enter the exact stroke you need in the Required stroke box – it is added to your order and completes the Mindman ordering code (MCJQ2-11-25-[stroke]M; the SKU shows the stroke range in brackets). Price is the Mindman list price for the longest stroke in the selected range.

Mounting brackets, rod-end connectors and sensor switches are sold separately.

Specifications

Acting type Double acting
Tube I.D. (mm) 12, 16, 20, 25
Port size M5×0.8
Operating pressure range 12,16: 0.07~1 MPa, 20,25: 0.05~1 MPa
Proof pressure 1.5 MPa
Ambient temperature －5℃~＋60℃ (No freezing)
Available speed range 50~500 mm/sec
Sensor switch holder RCB
Series Mindman MCJQ2

No additional information at this time.

There are no reviews yet

Only logged in customers who have purchased this product may leave a review.
