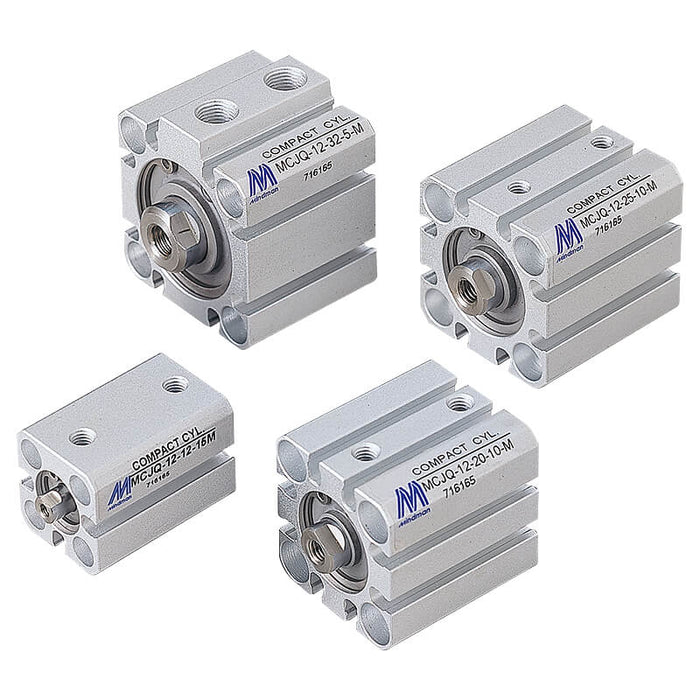

Mindman MCJQ series

Mindman MCJQ-15-25 Compact Cylinder, ø25 mm Bore, Single Acting, Spring Return, Male Rod Thread

SKU MCJQ-15-25-(1-5)
by Mindman
$50.58 - $61.29
$50.58
$50.58 - $61.29
$50.58
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MCJQ series compact cylinder, ø25 mm bore, single acting, spring return, male rod thread.

Stroke: available from 1 to 10 mm. Pick the stroke range, then enter the exact stroke you need in the Required stroke box – it is added to your order and completes the Mindman ordering code (MCJQ-15-25-[stroke][M]; the SKU shows the stroke range in brackets). Price is the Mindman list price for the longest stroke in the selected range.

ø12–ø25 bores have M5×0.8 ports; ø32 and larger are offered in NPT, Rc or G.

Mounting brackets, rod-end connectors and sensor switches are sold separately.

Specifications

Acting type Double acting / Single acting
Tube I.D. (mm) 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
Port size M5×0.8, Rc1/8, Rc1/4, Rc3/8
Medium Air
Operating pressure range 0.05~1 MPa
Proof pressure 1.5 MPa
Ambient temperature －5℃~＋60℃ (No freezing)
Available speed range 50~500 mm/sec
Sensor switch RDE, RDE1E (ø12, 16); RCE, RCE1 (ø20~100mm); RDEP (ø12, 16, 25, 40, 50, 63, 80, 100 mm)
Series Mindman MCJQ
