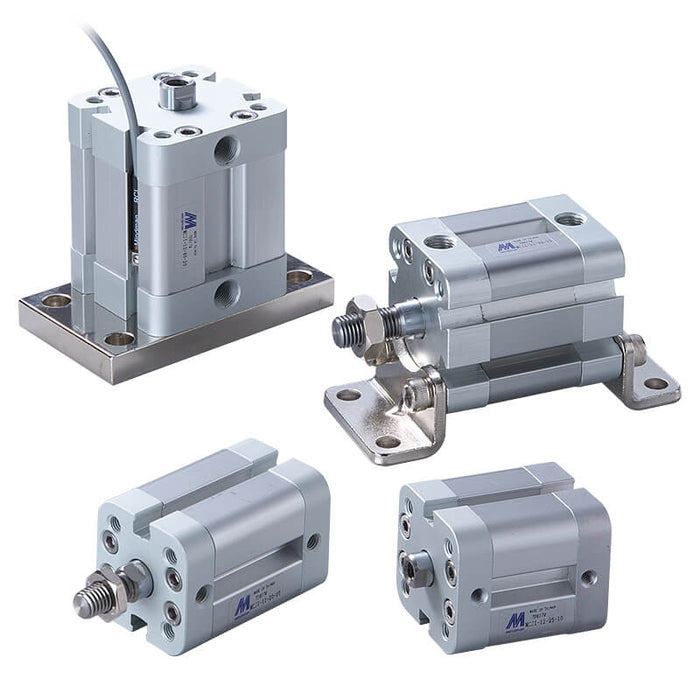

Mindman MCJI series

Mindman MCJI-11-25 ISO 21287 Compact Cylinder, ø25 mm Bore, Double Acting, Male Rod Thread

SKU MCJI-11-25-(1-5)
by Mindman
$60.33 - $87.60
$60.33
$60.33 - $87.60
$60.33
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MCJI series iso 21287 compact cylinder, ø25 mm bore, double acting, male rod thread.

Stroke: available from 1 to 200 mm. Pick the stroke range, then enter the exact stroke you need in the Required stroke box – it is added to your order and completes the Mindman ordering code (MCJI-11-25-[stroke]; the SKU shows the stroke range in brackets). Price is the Mindman list price for the longest stroke in the selected range.

Mounting brackets, rod-end connectors and sensor switches are sold separately.

Specifications

Acting type Double acting
Tube I.D. (mm) 20, 25, 32, 40, 50, 63, 80, 100
Port size 20,25: M5×0.8, 32~100: G1/8
Medium Air
Operating pressure range 0.05~1 MPa
Proof pressure 1.5 MPa
Ambient temperature －5℃~＋60℃ (No freezing)
Available speed range 50~500 mm/sec
Lubrication Without lubrication
Cushion Rubber bumpper
Stroke length tolerance ＋0~＋1.0 mm (※)
Sensor switch RDT, RQT, RCI
Remark (※) Stroke length tolerance does not include the amount of bumper change.
Series Mindman MCJI
