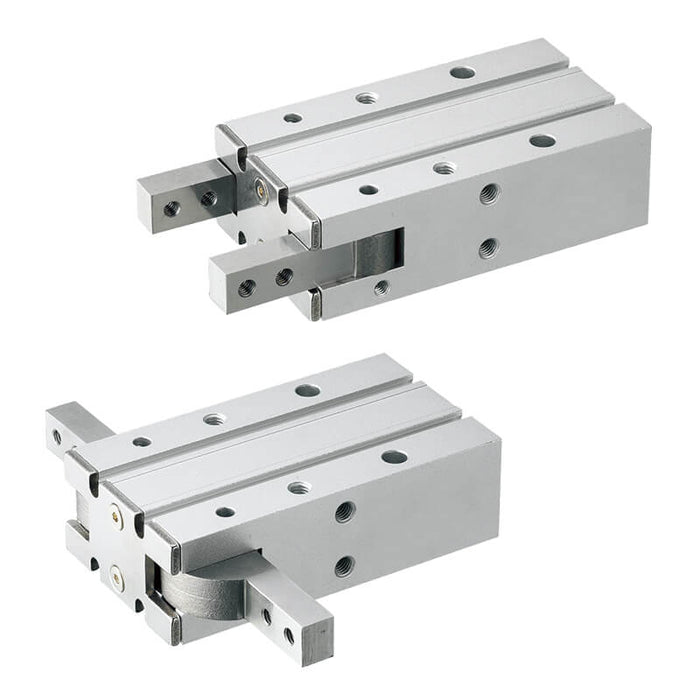

Mindman MCHY2 series

Mindman MCHY2-25D 180° Angular Gripper, ø25 mm

SKU MCHY2-25D
by Mindman
$193.80 - $193.80
$193.80
$193.80 - $193.80
$193.80
Availability:
In stock
Availability:
In stock

Mindman MCHY2 series 180° angular gripper (cam style), ø25 mm bore, double acting.

Select the options below; the full Mindman ordering code is shown as the SKU (MCHY2-25D[1]).

Magnet is standard (sensor-ready).

Price is the Mindman list price.

Specifications

Acting type Double Acting
Tube I.D. (mm) 10, 16, 20, 25
Medium Air
Operating pressure range 0.2~0.6 MPa
Ambient temperature －10~＋60℃ (No freezing)
Repeatability ±0.2 mm
Max.operating frequency 60 (c.p.m) (*1)
Lubrication Not required (*2)
Effective force (N.m) at (0.5 MPa) 0.16~2.28 N.m
Operating angle (both sides) Opened side:180°~182°, Closed side:-3°
Sensor switch RDC(V), RQC(V)
Weight 80g, 150g, 320g, 600g
Remark *1. Speed controllers are required.; *2. Sliding area of jaws need scheduled relubrication.
Series Mindman MCHY2
