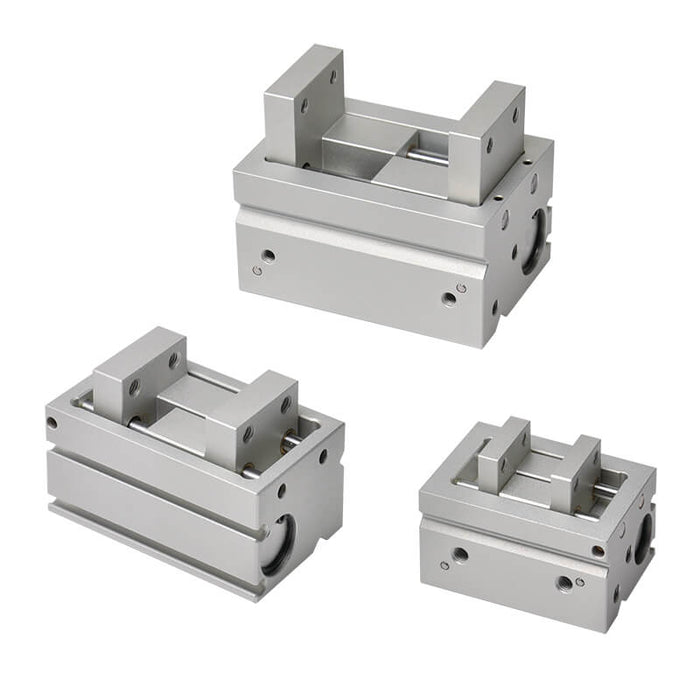

Mindman MCHU series parallel gripper (2 finger), ø20 mm bore.

Select the options below; the full Mindman ordering code is shown as the SKU (MCHU-20M).

Magnet is standard (sensor-ready).

Price is the Mindman list price.

Specifications

Acting type Double acting
Tube I.D. (mm) 12, 16, 20
Stroke 15, 20, 25
Fluid Air 0.2~0.7 MPa
Ambient temperature －10~＋60℃ (No freezing)
Lubrication Not required
Repeatability (±mm) ±0.03
Sensor switch 2 wire: RDFE(V): Non-contact; 3 wire: RNFE(V): NPN, RPFE(V): PNP
Weight 0.16, 0.29, 0.58 kg
Series Mindman MCHU
