Mindman MCHJ series

Mindman MCHJ-125 Parallel Gripper (3 Finger), Size 125

SKU MCHJ-125
by Mindman
$1,652.43 - $2,336.98
$1,652.43
$1,652.43 - $2,336.98
$1,652.43
Availability:
In stock
Availability:
In stock

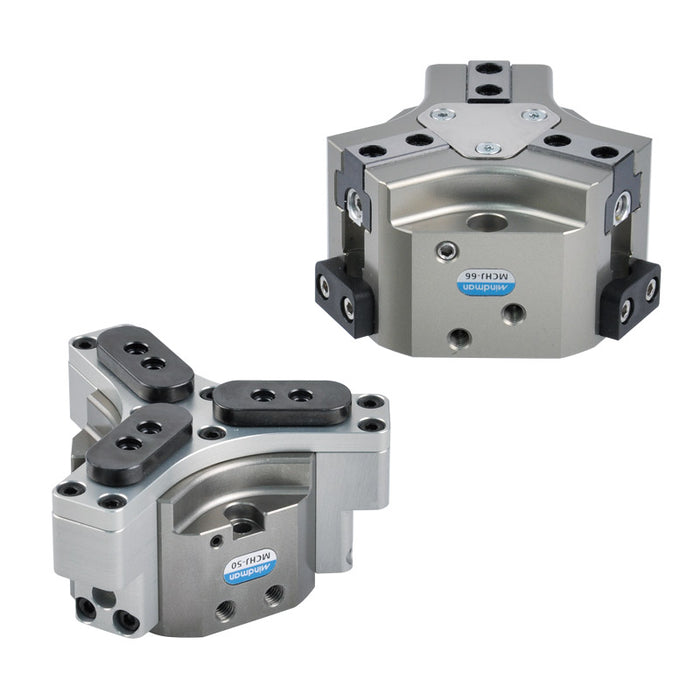

Mindman MCHJ series 3-finger parallel gripper, size 125.

Select the options below; the full Mindman ordering code is shown as the SKU (MCHJ-125[-P/SD/PSD]).

Proximity sensors (RJY-N/P-M8-3M, 2 recommended) are sold separately.

Price is the Mindman list price.

Specifications

Acting type Double acting
Size 50, 66, 80, 100, 125, 160
Medium Air
Stroke per-jaw 4~16 mm
Effective external gripping force (※) 95~1756 N
Ambient temperature ＋5℃~ ＋80℃
Close/Open time 0.025~0.25 s
Operating pressure range 0.2~0.8 MPa
Lubrication Not required
Compressed air consumption 9.2~485 cm³
Sensor switch 2 wire RDFE(V): Non-contact; 3 wire RNFE(V): NPN, RPFE(V): PNP
Proximity sensor RJY
Accessories Mounting block, Accessory kits
Weight 0.22 ~ 5.2 kg
Remark ※ Under the condition of clamping length 40mm and operation pressure 0.6 MPa.
Series Mindman MCHJ
