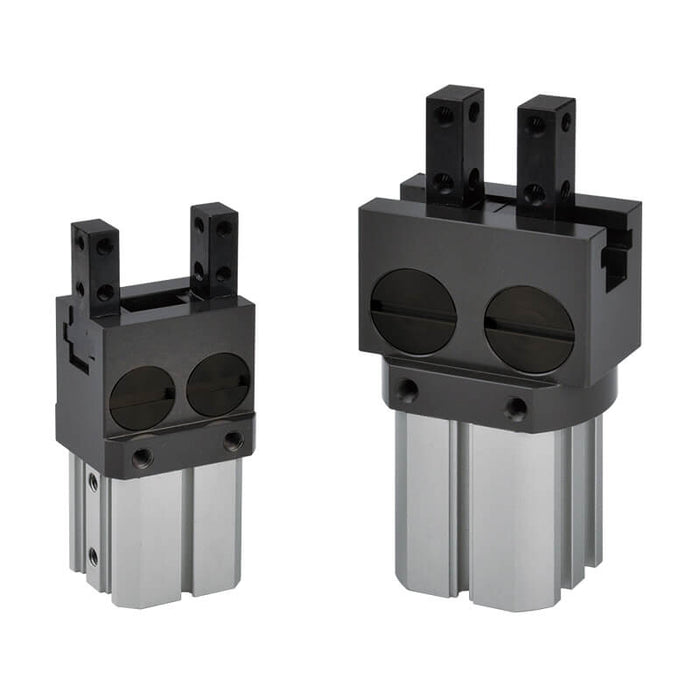

Mindman MCHH series parallel gripper (2 finger), ø25 mm bore.

Select the options below; the full Mindman ordering code is shown as the SKU (MCHH-25M).

Magnet is standard (sensor-ready).

Price is the Mindman list price.

Specifications

Acting type Double acting
Tube I.D. (mm) 20, 25, 40
Stroke 16, 26, 41
Medium Air
Operating pressure range 0.3~0.7 MPa
Ambient temperature –10~+60°C (No freezing)
Lubrication Not required
Repeatability ± 0.03 mm
Lubrication Not required
Max. operating frequency 60 c.p.m
Sensor switch RDC(V), RQC(V), RDFE(V)
Weight 0.27, 0.59, 1.46 kg
Series Mindman MCHH
