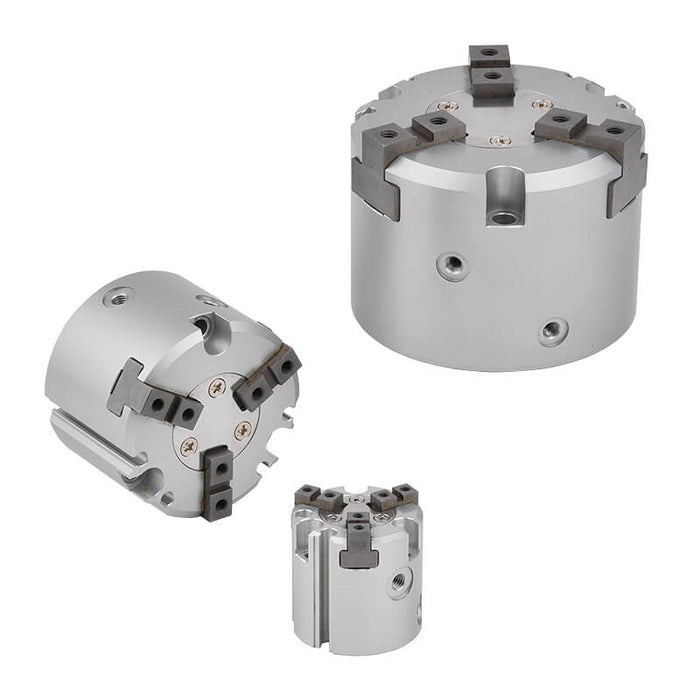

Mindman MCHG2 low-height 3-finger parallel gripper, ø16 mm bore.

Select the options below; the full Mindman ordering code is shown as the SKU (MCHG2-16M).

Magnet is standard (sensor-ready).

Price is the Mindman list price.

Specifications

Acting type Double acting
Tube I.D. (mm) 16(※2), 20, 25, 32, 40, 50, 63(※2), 80, 100, 125
Stroke (mm) 4, 6, 8, 12, 16, 20, 24, 32
Port size M3×0.5, M5×0.8, Rc1/8, Rc1/4, Rc3/8
Fluid Air
Operating pressure range 0.1~0.6 MPa
Ambient temperature －10~＋60℃ (No freezing)
Max.operating frequency 30~120 (c.p.m)
Lubrication Not required
Effective force (N.m) at (0.5 MPa) Extemal: 14N~1270N, Internal: 16N~1320N (※1)
Sensor switch RDC(V), RQC(V), RDFE(V)
Weight 80g~6200g
Remark ※1. Values for ø16~ø25 are with gripping length(L) = 20 mm, for ø32~ø63 with gripping length(L) = 30 mm, and for ø80~ø125 with gripping length(L) = 50 mm.Refer to “Effective Gripping Force” data for the gripping force at each gripping position.; ※2. ø16, ø63 are available with 2- finger type (Made to order). Please contact us if other size is needed.
Series Mindman MCHG2

No additional information at this time.
