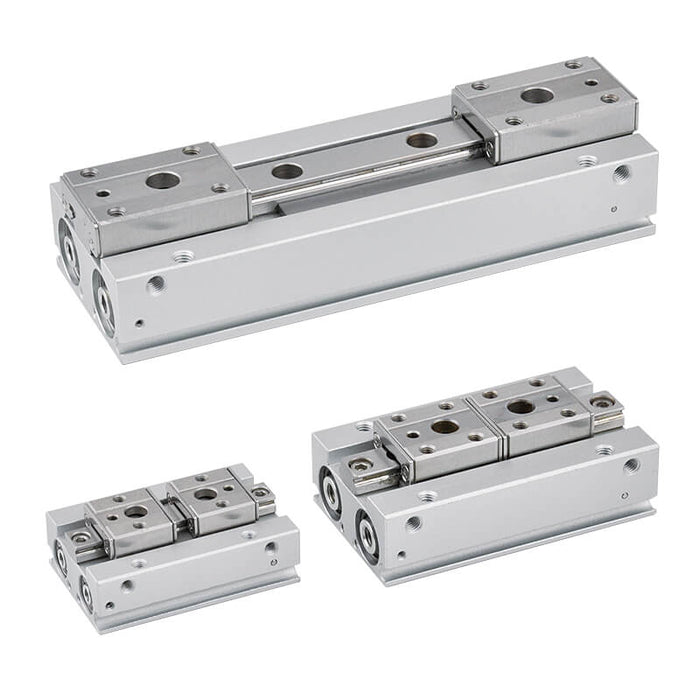

Mindman MCHD series

Mindman MCHD-20 Parallel Gripper (2 Finger), ø20 mm

SKU MCHD-20
by Mindman
$398.40 - $600.87
$398.40
$398.40 - $600.87
$398.40
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MCHD series long-stroke parallel gripper, ø20 mm bore.

Select the options below; the full Mindman ordering code is shown as the SKU (MCHD-20[R][-1/-2]).

Magnet is standard (sensor-ready).

Price is the Mindman list price.

Specifications

Acting type Double acting
Tube I.D. 8, 12, 16, 20 mm
Port size M3×0.5, M5×0.8
Medium Air
Operating pressure range φ8: 0.15~0.7 MPa; φ12, 16, 20: 0.1~0.7 MPa
Repeatability ± 0.05 mm (※)
Ambient temperature －10~＋60℃ (No freezing)
Max. frequency 120 cycles / min (Short, medium stroke); 120 cycles / min (Long stroke)
Lubricator Not required
Sensor switch RDC(V), RQC(V), RDFE(V)
Attached bolt Tube I.D. 8, 12: 2 pcs
Weight 65, 150, 350, 660 g (Short stroke); 79.1, 191.3, 454.2, 869 g (Medium stroke); 113.3, 291.2, 678.3, 1310.6 g (Long stroke)
Remark ※ This is the value when no offset load is applied to the finger.When an offset; load is applied to the finger, the maximum value is ±0.15 mm due to the influence; of backlash of the rack and pinion.
Series Mindman MCHD
