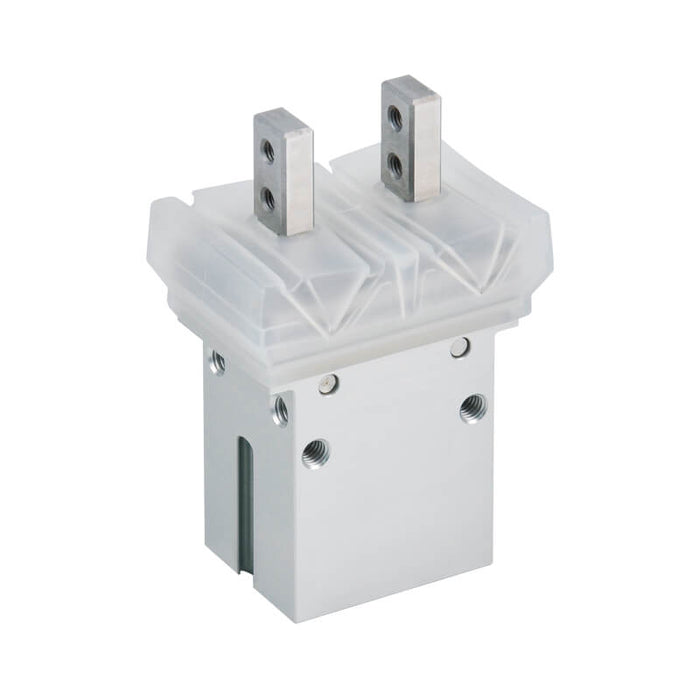

Mindman MCHCJ series

Mindman MCHCJ-16 Parallel Gripper with Dust Cover, ø16 mm

SKU MCHCJ-16
by Mindman
$261.42 - $339.85
$261.42
$261.42 - $339.85
$261.42
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MCHCJ series parallel gripper with dust cover, ø16 mm bore.

Select the options below; the full Mindman ordering code is shown as the SKU (MCHCJ-16[-S/C]).

Magnet is standard (sensor-ready).

Price is the Mindman list price.

Specifications

Acting type Double acting / Single acting
Tube I.D. 16 mm
Opening / Closing stroke 6 mm
Port size M5×0.8
Medium Air
Operating pressure range Double acting: 0.1~0.7 MPa, Single acting: 0.25~0.7 MPa
Ambient temperature －10~＋60℃ (No freezing)
Repeatability ± 0.01 mm
Max. operating frequency 180 (c.p.m)
Lubricator Not required
Volume Double acting: A port inlet: 1.1 cm³; B port inlet: 1.1 cm³; Single acting: A port inlet: 1.1 cm³; B port inlet: NO. 1.1 cm³, NC. 0.9 cm³
Sensor switch RDC(V), RQC(V), RDFE(V)
Weight (g) 135 g
Series Mindman MCHCJ
