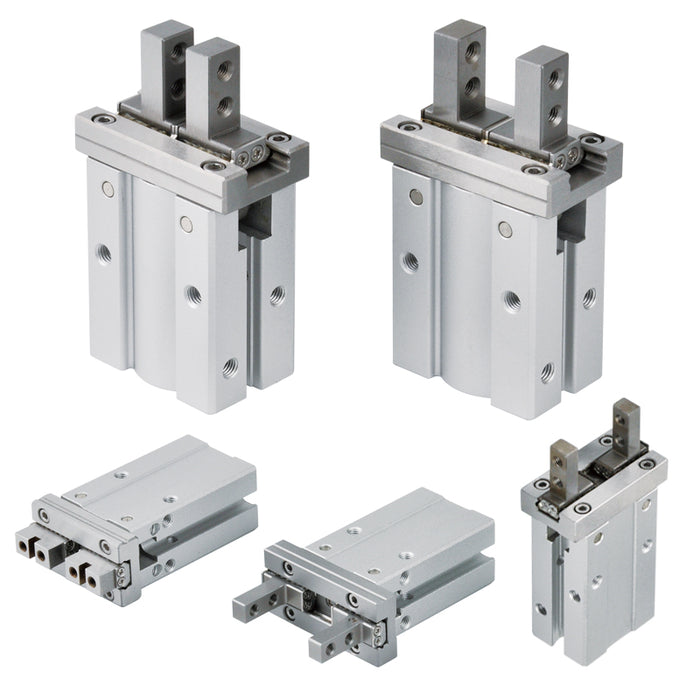

Mindman MCHC series

Mindman MCHC-20 Parallel Gripper (2 Finger), ø20 mm

SKU MCHC-20
by Mindman
$249.34 - $324.14
$249.34
$249.34 - $324.14
$249.34
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MCHC series parallel gripper, ø20 mm bore.

Select the options below; the full Mindman ordering code is shown as the SKU (MCHC-20-[style][type]).

Magnet is standard (sensor-ready).

Price is the Mindman list price.

Specifications

Acting type Double acting / Single acting
Tube I.D. (mm) 6, 10, 16, 20, 25, 32, 40 mm
Opening / Closing stroke (mm) 4~30 mm
Port size M3×0.5, M5×0.8
Medium Air
Operating pressure range Double acting: 0.1~0.7 MPa; Single acting: 0.25~0.7 MPa
Ambient temperature －10~＋60℃ (No freezing)
Repeatability (mm) ± 0.01 mm
Max. operating frequency (c.p.m) 180 cycles/min; 120 cycles/min (Long stroke)
Lubricator Not required
Volume Double acting: A port inlet: 0.2~28.3 cm³; B port inlet: 0.1~19 cm³; S: Single acting: A port inlet: 0.5~5 cm³; B port inlet: 0.4~3.8 cm³; C: Single acting: A port inlet: 0.5~5.2 cm³; B port inlet: 0.3~3.4 cm³
Sensor switch ø6,32,40: RDC(V), RQC(V), RDFE(V); ø10~40: RDE, RDE-D
Weight (g) Double acting; 27, 55, 124, 250, 456, 732, 1298 g (Standard); 56, 124, 252, 463 g (Long stroke); 53, 124, 244, 450, 760, 1344 g (Flat type); Single acting; 70, 145, 270, 490 g
Series Mindman MCHC
