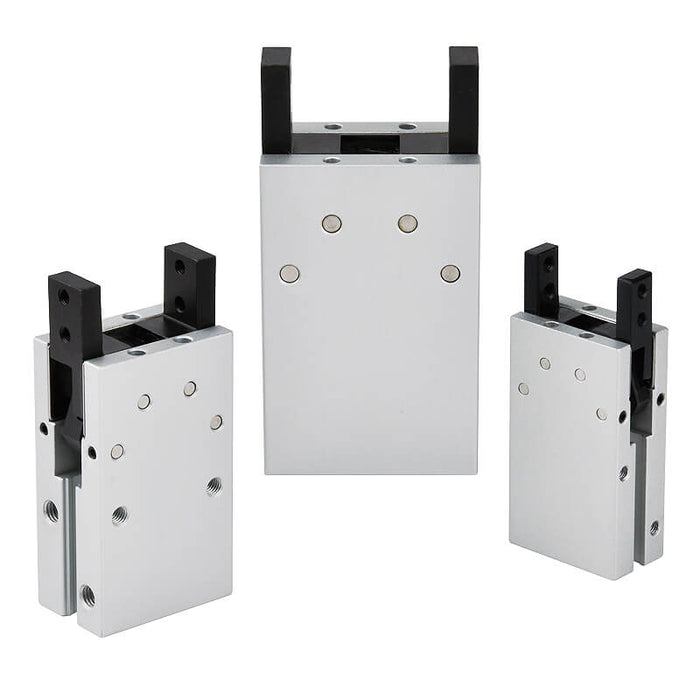

Mindman MCHB series

Mindman MCHB-25 Parallel Gripper (2 Finger), ø25 mm

SKU MCHB-25
by Mindman
$204.00 - $265.20
$204.00
$204.00 - $265.20
$204.00
Availability:
In stock
Availability:
In stock

Mindman MCHB series parallel gripper (2 finger), ø25 mm bore.

Select the options below; the full Mindman ordering code is shown as the SKU (MCHB-25[-S]).

Magnet is standard (sensor-ready).

Price is the Mindman list price.

Specifications

Acting type Double / Single acting
Tube I.D. (mm) 12, 16, 20, 25, 32
Port size M3×0.5, M5×0.8
Medium Air
Operating pressure range Double acting: 0.15~0.7 MPa; Single acting: 0.2~0.7 MPa
Ambient temperature －5~＋60℃ (No freezing)
Max.operating frequency 180 Cycles/min
Lubrication Cylinder: Not required, Lever: Grease (Actuation at)
Volume Double acting: A port inlet: 0.8~8.9 cm³; B port inlet: 0.4~6 cm³; Single acting: A port inlet: 0.8~9.3 cm³; B port inlet: 0.5~6.7 cm³
Max arm length (L) mm 30, 40, 60, 70, 85
Lever open / Close stroke 6, 8, 12, 14, 16
Sensor switch RDE,RDE-D: Non-contact
Series Mindman MCHB
