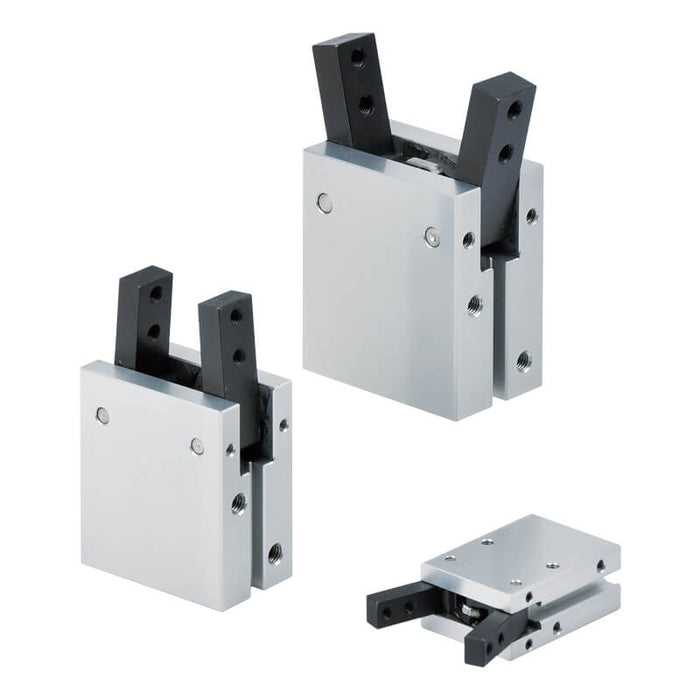

Mindman MCHA series

Mindman MCHA-16 Angular Gripper (30°), ø16 mm

SKU MCHA-16
by Mindman
$65.48 - $85.12
$65.48
$65.48 - $85.12
$65.48
Availability:
In stock
Availability:
In stock

Mindman MCHA series angular gripper (30°), ø16 mm bore.

Select the options below; the full Mindman ordering code is shown as the SKU (MCHA-16[-S]).

Magnet is standard (sensor-ready).

Price is the Mindman list price.

Specifications

Acting type Double Acting / Single acting (N.O.)
Tube I.D. (mm) 12, 16, 20, 25, 32
Port size M3×0.5, M5×0.8
Medium Air
Operating pressure range 0.15~0.7 MPa
Ambient temperature －5~＋60℃ (No freezing)
Max.operating frequency (c.p.m) 180 (*1)
Lubrication Cylinder:Not required, Lever:Grease (Joint parts)
Volume-Finger open Double acting: 0.7~6.7 cm³; Single acting: 0.6~7.9 cm³
Volume-Finger close 0.4~4.9 cm³
Max arm length (L) 30~85 mm (*2)
Clamp / Release angle －10~30°
Sensor switch RDE, RDE-D: Non-contact
Weight 53~525 g
Remark *1. Use tube I.D. 12 at max operating frequency will affect the service life.; *2. L: Arm length (mm)
Series Mindman MCHA
