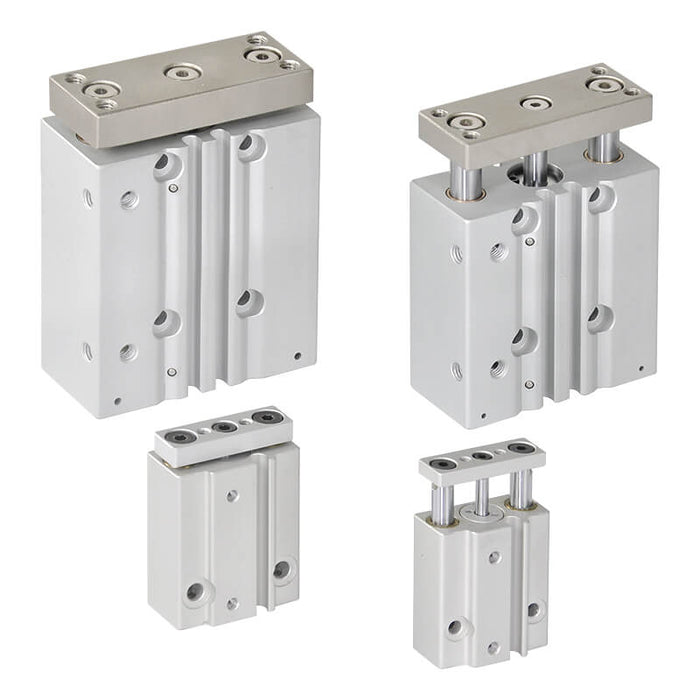

Mindman MCGS series

Mindman MCGS-03-50 Twin-Guide Cylinder, Stop / Slide Bush, ø50 mm Bore

SKU MCGS-03-50-(1-25)-NPT
by Mindman
$229.40 - $652.96
$229.40
$229.40 - $652.96
$229.40
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MCGS series twin-guide cylinder, stop / slide bush, ø50 mm bore.

Stroke: available from 1 to 400 mm. Pick the stroke range, then enter the exact stroke you need in the Required stroke box – it is added to your order and completes the Mindman ordering code (MCGS-03-50-[stroke]-[thread]; the SKU shows the stroke range in brackets). Price is the Mindman list price for the longest stroke in the selected range.

Magnet is standard (sensor-ready).

ø12 and ø16 have M5×0.8 ports; ø20–ø63 are offered in NPT, Rc or G.

Mounting brackets, rod-end connectors and sensor switches are sold separately.

Specifications

Acting type Double acting
Tube I.D. (mm) 6, 10, 12, 16, 20, 25, 32, 40, 50, 63
Port size M5×0.8, Rc1/8, Rc1/4
Medium Air
Operating perssure range 0.1~1 MPa
Proof pressure 1.5 MPa
Ambient temperature －5℃~＋60℃ (No freezing)
Cushion With rubber cushion pad
Available speed range 50~500 mm/sec
Lubrication Not required
Sensor switch RDCV, RQCV, RDGV, RCE, RCE1, RDEP
Series Mindman MCGS
