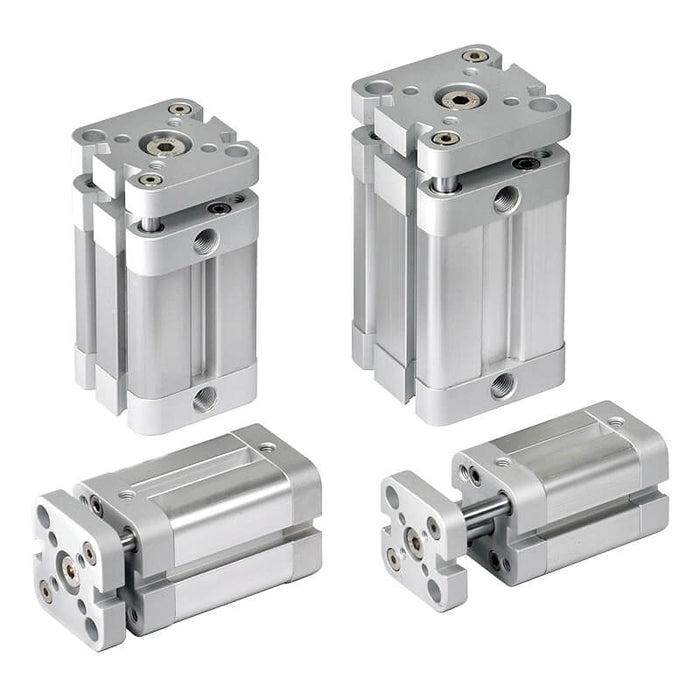

Mindman MCGI series

Mindman MCGI-12-50 Compact Twin-Guide Cylinder, Lift / Slide Bush, ø50 mm Bore

SKU MCGI-12-50-(1-10)
by Mindman
$109.89 - $201.64
$109.89
$109.89 - $201.64
$109.89
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MCGI series compact twin-guide cylinder, lift / slide bush, ø50 mm bore.

Stroke: available from 1 to 300 mm. Pick the stroke range, then enter the exact stroke you need in the Required stroke box – it is added to your order and completes the Mindman ordering code (MCGI-12-50-[stroke]; the SKU shows the stroke range in brackets). Price is the Mindman list price for the longest stroke in the selected range.

Mounting brackets, rod-end connectors and sensor switches are sold separately.

Specifications

Acting type Double acting
Tube I.D. (mm) 20, 25, 32, 40, 50, 63, 80, 100
Port size M5×0.8, G1/8
Medium Air
Operating pressure range φ20, 25: 0.15~1 MPa; φ32~100: 0.1~1 MPa
Proof pressure 1.5 MPa
Ambient temperature －5℃~＋60℃ (No freezing)
Lubrication Without lubrication
Available speed range 50~500 mm/sec
Cushion Rubber bumper
Stroke length tolerance ＋0~＋1.0 mm (※1)
Sensor switch RDT, RQT, RCI
Remark ※1. Stroke length tolerance does not include the amount of bumper change.
Series Mindman MCGI
