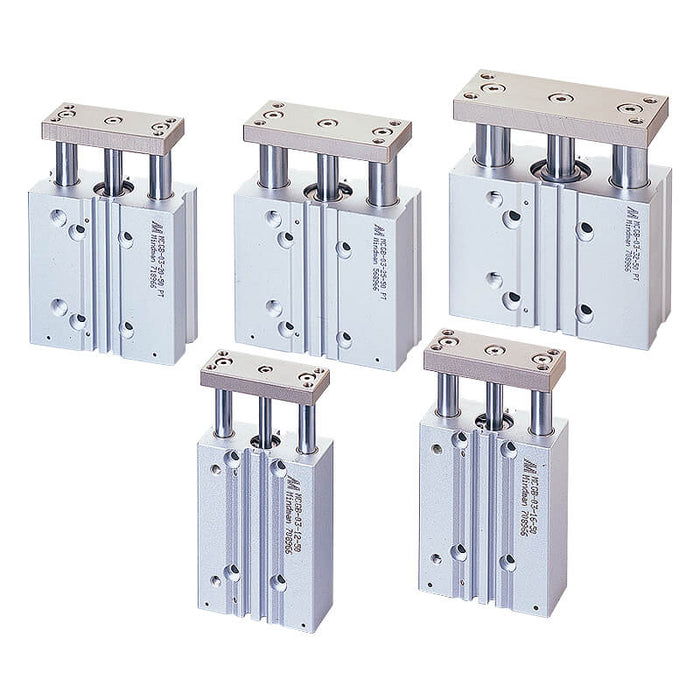

Mindman MCGB series

Mindman MCGB-23-20 Twin-Guide Cylinder, Push / Linear Bush Bearing, ø20 mm Bore

SKU MCGB-23-20-(1-20)-NPT
by Mindman
$178.91 - $349.73
$178.91
$178.91 - $349.73
$178.91
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MCGB series twin-guide cylinder, push / linear bush bearing, ø20 mm bore.

Stroke: available from 1 to 200 mm. Pick the stroke range, then enter the exact stroke you need in the Required stroke box – it is added to your order and completes the Mindman ordering code (MCGB-23-20-[stroke]-[thread]; the SKU shows the stroke range in brackets). Price is the Mindman list price for the longest stroke in the selected range.

Magnet is standard (sensor-ready).

Mounting brackets, rod-end connectors and sensor switches are sold separately.

Specifications

Acting type Double acting
Tube I.D. (mm) 12, 16, 20, 25, 32
Port size M5×0.8, Rc1/8
Medium Air
Operating pressure range 0.1~1 MPa
Proof pressure 1.5 MPa
Ambient temperature －5~＋60℃ (No freezing)
Lubrication Not required
Cushion With rubber cushion pad
Sensor switch RCE, RCE1, RDEP
Series Mindman MCGB
