Mindman MCGA series

Mindman MCGA-13-20 Twin-Guide Cylinder, Lift / Linear Bearing, ø20 mm Bore

SKU MCGA-13-20-(1-30)-NPT
by Mindman
$266.67 - $304.43
$266.67
$266.67 - $304.43
$266.67
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

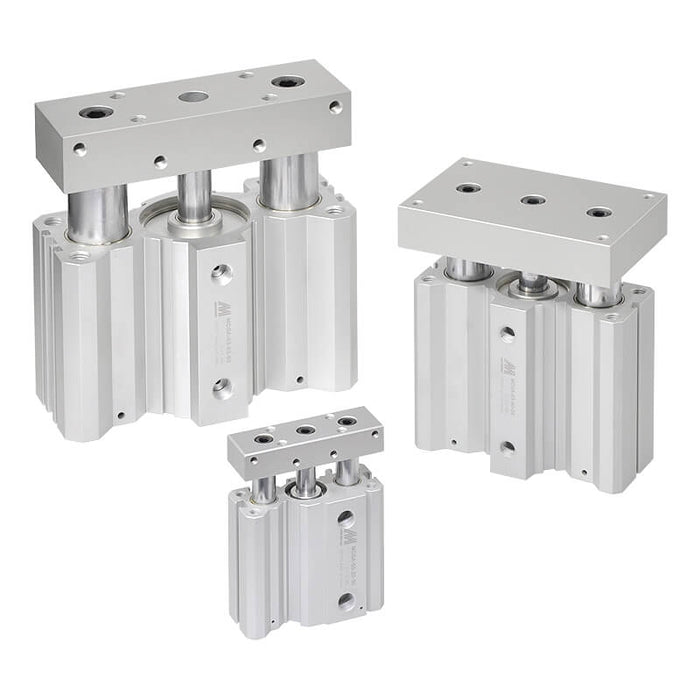

Mindman MCGA series twin-guide cylinder, lift / linear bearing, ø20 mm bore.

Stroke: available from 1 to 100 mm. Pick the stroke range, then enter the exact stroke you need in the Required stroke box – it is added to your order and completes the Mindman ordering code (MCGA-13-20-[stroke]-[thread]; the SKU shows the stroke range in brackets). Price is the Mindman list price for the longest stroke in the selected range.

Magnet is standard (sensor-ready).

Mounting brackets, rod-end connectors and sensor switches are sold separately.

Specifications

Acting type Double acting
Tube I.D. (mm) 20, 32, 40, 50, 63, 80
Port size Rc1/8, Rc1/4, Rc3/8
Medium Air
Operating pressure range 0.1~1 MPa
Proof pressure 1.5 MPa
Ambient temperature －5~＋60℃ (No freezing)
Lubrication Not required
Available speed range 50~500mm/sec
Cushion With rubber cushion pad
Sensor switch RCB、RCA
Series Mindman MCGA
