Mindman MCG3 series

Mindman MCG3-80 Triple-Guide Cylinder, ø80 mm Bore

SKU MCG3-80-(1-30)-D-NPT
by Mindman
$818.63 - $1,377.68
$818.63
$818.63 - $1,377.68
$818.63
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

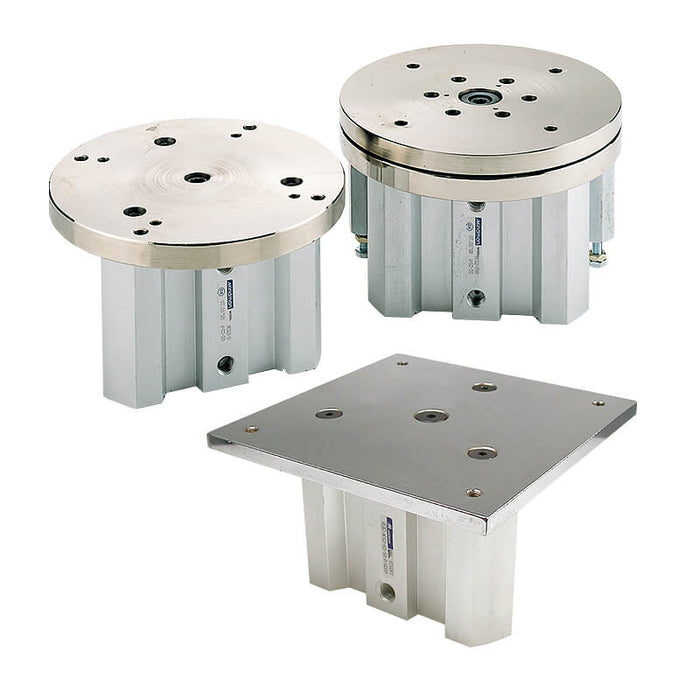

Mindman MCG3 series triple-guide cylinder, ø80 mm bore.

Stroke: available from 1 to 100 mm. Pick the stroke range, then enter the exact stroke you need in the Required stroke box – it is added to your order and completes the Mindman ordering code (MCG3-80-[stroke]-[type]-[thread]; the SKU shows the stroke range in brackets). Price is the Mindman list price for the longest stroke in the selected range.

Magnet is standard (sensor-ready).

Mounting brackets, rod-end connectors and sensor switches are sold separately.

Specifications

Acting type Double acting
Tube I.D. (mm) 63, 80
Port size Rc1/4, Rc3/8
Standard stroke 30,50,75,100 mm
Medium Air
Operating pressure range 0.1~1 MPa
Proof pressure 1.5 MPa
Ambient temperature －5~＋60℃ (No freezing)
Lubrication Not required
Available speed range 50~500 mm/sec
Cushion With rubber cushion pad
Sensor switch RCE, RCE1, RDEP
Remark Stroke out of specification is also available.
Series Mindman MCG3
