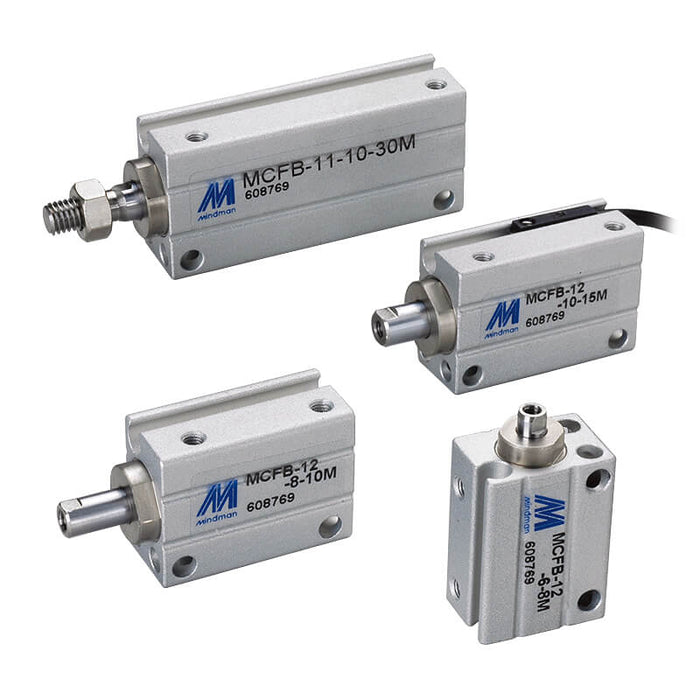

Mindman MCFB series

Mindman MCFB-12-16 Arbitrary-Mount Cylinder, ø16 mm Bore, Double Acting, Female Rod Thread

SKU MCFB-12-16-(1-5)
by Mindman
$36.00 - $46.57
$36.00
$36.00 - $46.57
$36.00
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MCFB series arbitrary-mount cylinder, ø16 mm bore, double acting, female rod thread.

Stroke: available from 1 to 30 mm. Pick the stroke range, then enter the exact stroke you need in the Required stroke box – it is added to your order and completes the Mindman ordering code (MCFB-12-16-[stroke][M]; the SKU shows the stroke range in brackets). Price is the Mindman list price for the longest stroke in the selected range.

Mounting brackets, rod-end connectors and sensor switches are sold separately.

Specifications

Acting type Double acting
Tube I.D. (mm) 6, 8, 10, 12, 16, 20
Port size M3×0.5, M5×0.8
Medium Air
Max. operating pressure 0.7 MPa
Min. operating pressure Double acting: 0.05~0.15 MPa, Single acting: 0.2~0.3 MPa
Proof pressure 1 MPa
Ambient temperature －5~＋60℃ (No freezing)
Available speed range 50~500 mm/sec
Lubrication Not required
Sensor switch RDC(V), RQC(V), RDFE(V), RDGV (※)
Remark (※) Short stroke length (4, 6, 8mm) only use RDGV.
Series Mindman MCFB
