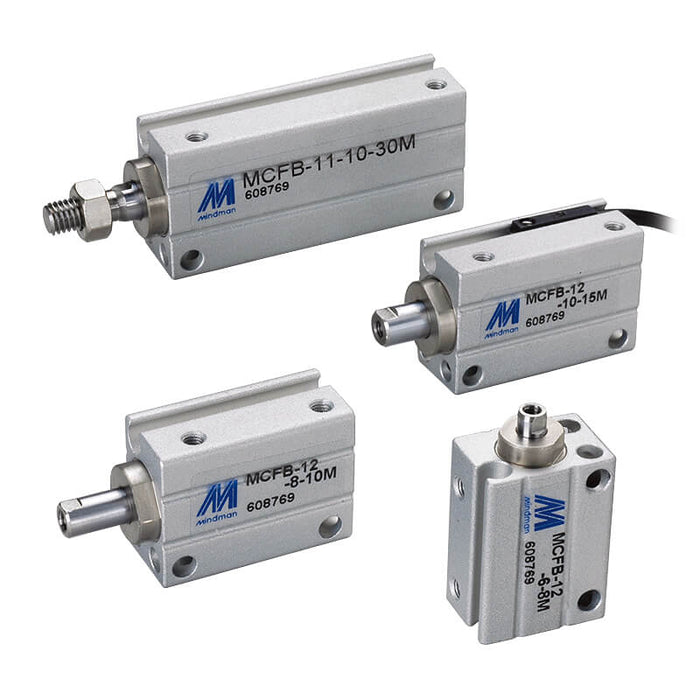

Mindman MCFB series

Mindman MCFB-11-6 Arbitrary-Mount Cylinder, ø6 mm Bore, Double Acting, Male Rod Thread

SKU MCFB-11-6-(1-6)
by Mindman
$21.66 - $31.07
$21.66
$21.66 - $31.07
$21.66
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MCFB series arbitrary-mount cylinder, ø6 mm bore, double acting, male rod thread.

Stroke: available from 1 to 30 mm. Pick the stroke range, then enter the exact stroke you need in the Required stroke box – it is added to your order and completes the Mindman ordering code (MCFB-11-6-[stroke][M]; the SKU shows the stroke range in brackets). Price is the Mindman list price for the longest stroke in the selected range.

Mounting brackets, rod-end connectors and sensor switches are sold separately.

Specifications

Acting type Double acting
Tube I.D. (mm) 6, 8, 10, 12, 16, 20
Port size M3×0.5, M5×0.8
Medium Air
Max. operating pressure 0.7 MPa
Min. operating pressure Double acting: 0.05~0.15 MPa, Single acting: 0.2~0.3 MPa
Proof pressure 1 MPa
Ambient temperature －5~＋60℃ (No freezing)
Available speed range 50~500 mm/sec
Lubrication Not required
Sensor switch RDC(V), RQC(V), RDFE(V), RDGV (※)
Remark (※) Short stroke length (4, 6, 8mm) only use RDGV.
Series Mindman MCFB

No additional information at this time.
