Mindman MCFA series

Mindman MCFA-21-16 Arbitrary-Mount Cylinder, ø16 mm Bore, Double Rod, Male Rod Thread

SKU MCFA-21-16-(1-5)
by Mindman
$32.55 - $74.73
$32.55
$32.55 - $74.73
$32.55
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

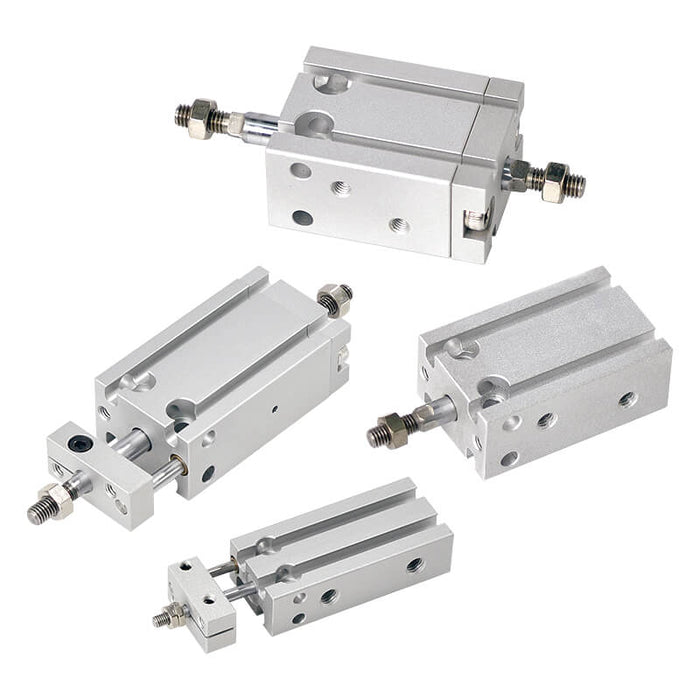

Mindman MCFA series arbitrary-mount cylinder, ø16 mm bore, double rod, male rod thread.

Stroke: available from 1 to 30 mm. Pick the stroke range, then enter the exact stroke you need in the Required stroke box – it is added to your order and completes the Mindman ordering code (MCFA-21-16-[stroke][M][-K]; the SKU shows the stroke range in brackets). Price is the Mindman list price for the longest stroke in the selected range.

Mounting brackets, rod-end connectors and sensor switches are sold separately.

Specifications

Acting type Double acting
Tube I.D. (mm) 6, 10, 16, 20, 25, 32
Port size M5×0.8, Rc1/8
Medium Air
Max. operating pressure 0.7 MPa
Min. operating pressure φ6: 0.12 / φ10,16: 0.06; φ20,25,32: 0.05 MPa
Proof pressure 1 MPa
Ambient temperature －5℃~＋60℃ (No freezing)
Available speed range 50~500 mm/sec
Cushion With rubber cushion pad
Sensor switch RCE, RCE1, RDEP
Lubrication Not required
Series Mindman MCFA
