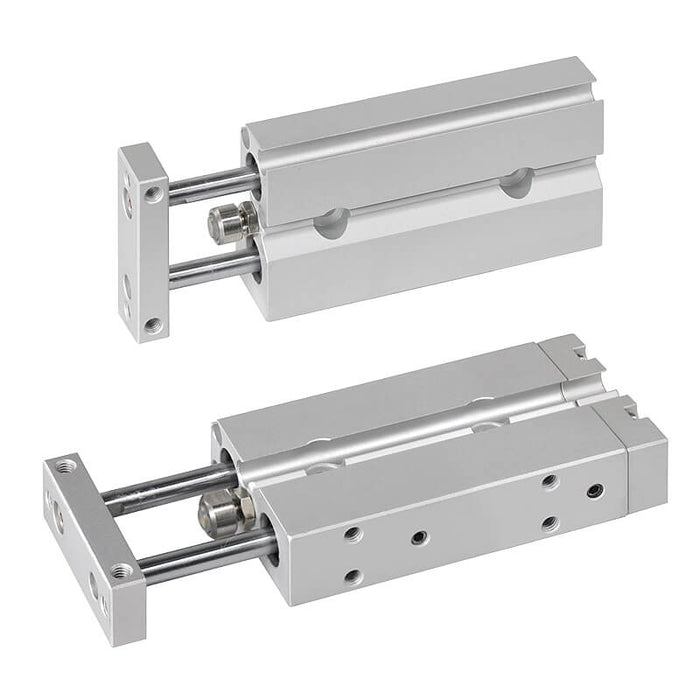

Mindman MCDJ series

Mindman MCDJ-03-6 Dual-Rod Cylinder, Slide Bush, ø6 mm Bore

SKU MCDJ-03-6-(1-10)
by Mindman
$81.95 - $88.64
$81.95
$81.95 - $88.64
$81.95
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MCDJ series dual-rod cylinder, slide bush, ø6 mm bore.

Stroke: available from 1 to 50 mm. Pick the stroke range, then enter the exact stroke you need in the Required stroke box – it is added to your order and completes the Mindman ordering code (MCDJ-03-6-[stroke]; the SKU shows the stroke range in brackets). Price is the Mindman list price for the longest stroke in the selected range.

Magnet is standard (sensor-ready).

Mounting brackets, rod-end connectors and sensor switches are sold separately.

Specifications

Acting type Double acting
Tube I.D. (mm) φ6, φ10
Port size M3×0.5, M5×0.8
Medium Air
Max. operating pressure 0.7 MPa
Min. operating pressure φ6: 0.15 MPa, φ10: 0.1 MPa
Proof pressure 1 MPa
Ambient temperature －5~＋60℃ (No freezing)
Lubrication Not required (If lubrication is used, apply turbine oil NO1 ISO VG32)
Available speed range 50~500 mm/sec
Cushion With rubber cushion pad (both side)
Sensor switch RDC(V), RQC(V), RDFE(V), RDGV
Series Mindman MCDJ
