Mindman MCDA series

Mindman MCDA-23-20 Dual-Rod Cylinder, Linear Bearing, ø20 mm Bore

SKU MCDA-23-20-(1-10)
by Mindman
$169.92 - $213.68
$169.92
$169.92 - $213.68
$169.92
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

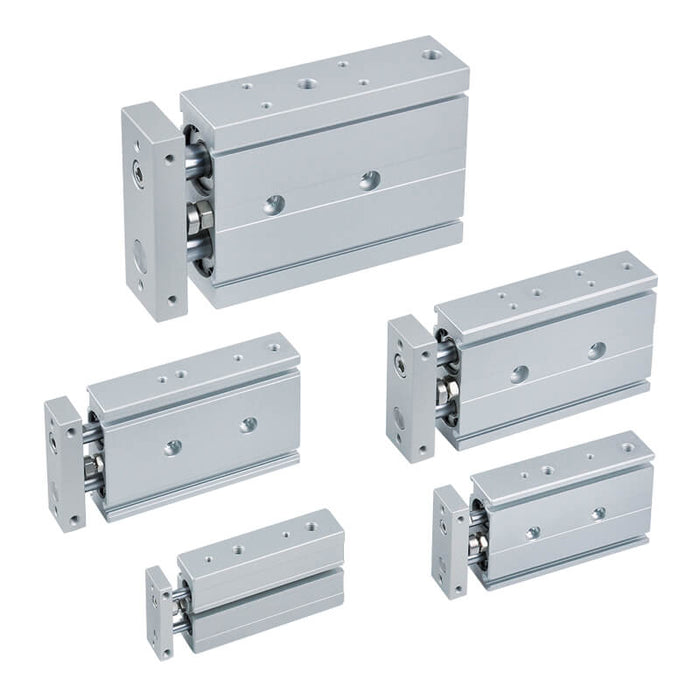

Mindman MCDA series dual-rod cylinder, linear bearing, ø20 mm bore.

Stroke: available from 1 to 100 mm. Pick the stroke range, then enter the exact stroke you need in the Required stroke box – it is added to your order and completes the Mindman ordering code (MCDA-23-20-[stroke]; the SKU shows the stroke range in brackets). Price is the Mindman list price for the longest stroke in the selected range.

Magnet is standard (sensor-ready).

ø6–ø20 have M5×0.8 ports; ø25 and ø32 are offered in NPT, Rc or G.

Mounting brackets, rod-end connectors and sensor switches are sold separately.

Specifications

Acting type Double acting
Tube I.D. (mm) 6, 12, 16, 20, 25, 32
Port size M5×0.8, Rc1/8
Medium Air
Operating pressure range 0.05~0.7 MPa
Proof pressure 1 MPa
Ambient temperature －5~＋60℃ (No freezing)
Lubrication Not required
Available speed range φ 6: 50~300 mm/sec; φ 12~32: 50~500 mm/sec
Cushion With rubber cushion pad (both side)
Sensor switch RCE, RCE1, RDEP
Series Mindman MCDA
