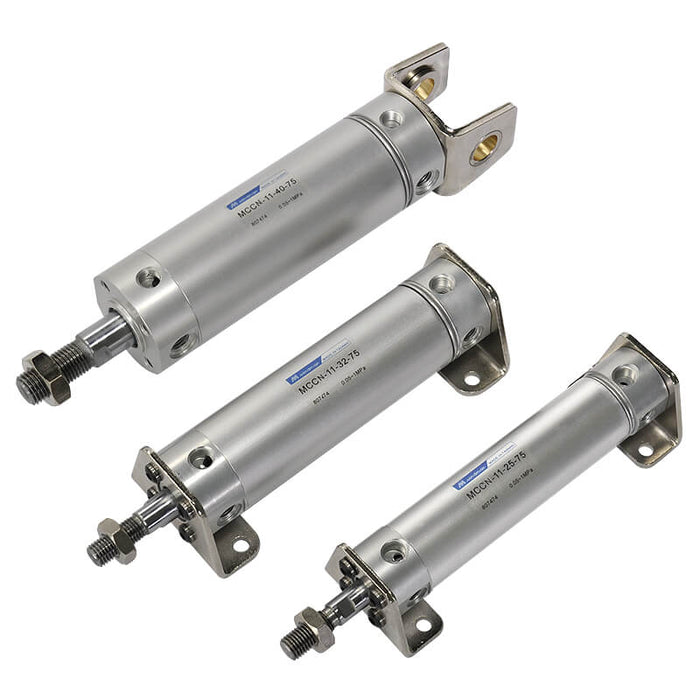

Mindman MCCN series

Mindman MCCN-11-50 Round Cylinder (Inch), 2" Bore, Double Acting, Male Rod Thread

SKU MCCN-11-50-(0025-0100)
by Mindman
$104.98 - $177.55
$104.98
$104.98 - $177.55
$104.98
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MCCN series round cylinder (inch), 2" bore, double acting, male rod thread.

Stroke: available from 0.25 to 12 in. Pick the stroke range, then enter the exact stroke you need in the Required stroke box – it is added to your order and completes the Mindman ordering code (MCCN-11-50-[stroke: 4 digits, e.g. 0425 = 4.25 in][M][-A]; the SKU shows the stroke range in brackets). Price is the Mindman list price for the longest stroke in the selected range.

NPT ports.

Mounting brackets, rod-end connectors and sensor switches are sold separately.

Specifications

Acting type Double acting
Tube I.D. (inch) 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2"
Port size Rc(PT) NPT1/8, NPT1/4
Medium Air
Max operating pressure 1 MPa
Min operating pressure 0.05 MPa
Proof pressure 1.5 MPa
Ambient temperature －5~＋60°C (No freezing)
Lubrication Not require
Available speed range 50~500 mm/sec
Max. allowable kinetic energy Cushion pad 0.07~0.85 J; Cushion air 0.09~1.23 J
Cushion With rubber cushion pad
Sensor switch RDC, RQC, RCM
Sensor switch holder R*C: BKC-1 (Not for R*CV angle cable); RCM: BMG20~BMG63
Series Mindman MCCN
