Mindman MCCH series

Mindman MCCH-11-25 High-Speed Cylinder, ø25 mm Bore, Double Acting, Male Rod Thread

SKU MCCH-11-25-(250-250)-NPT
by Mindman
$355.67 - $389.90
$355.67
$355.67 - $389.90
$355.67
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MCCH series high-speed cylinder, ø25 mm bore, double acting, male rod thread.

Stroke: available from 250 to 700 mm. Pick the stroke range, then enter the exact stroke you need in the Required stroke box – it is added to your order and completes the Mindman ordering code (MCCH-11-25-[stroke]-[thread]; the SKU shows the stroke range in brackets). Price is the Mindman list price for the longest stroke in the selected range.

Mounting brackets, rod-end connectors and sensor switches are sold separately.

Specifications

Acting type Double acting
Tube I.D. (mm) 25, 32
Port size Rc1/3, Rc3/8
Medium Air
Max. operating perssure 1 MPa
Min. operating perssure 0.05 MPa
Proof pressure 1.5 MPa
Lubrication Not required
Ambient temperature －5℃~＋60℃ (No freezing)
Available speed range 50~3000 mm/sec
Cushion Air cushion
Max energy absorption 12, 21 J
Standard Stroke (*1,2,3) 250~1000 mm
Max. stroke 1500 mm
Effective cushioning stroke 80 mm

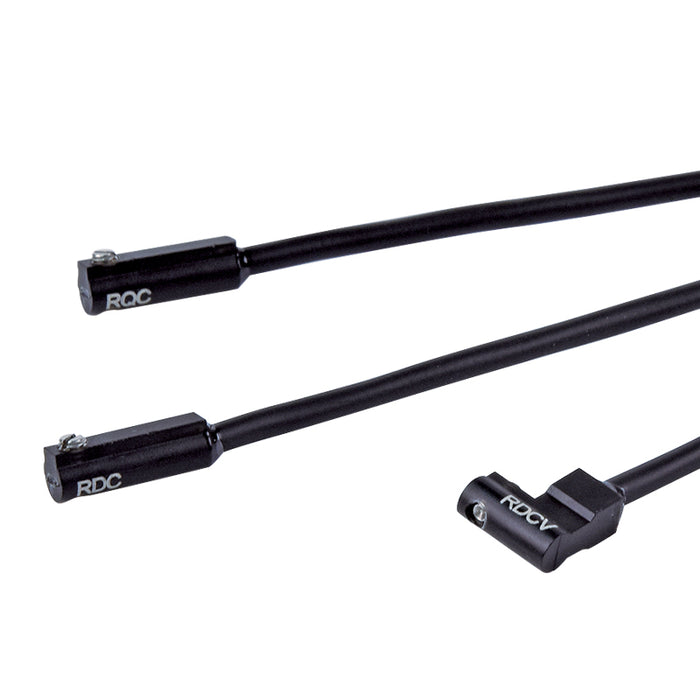

Sensor switch RDC, RQC, RCM
Sensor switch band R*C: BKC-1 (Not for R*CV angle cable); RCM: BMG25, BMG32
Remark *1. Minimum stroke unit 1mm.; *2. Outside the guaranteed range when the stroke; exceeds standard stroke, Please reconfirm the dimension; with our sales department when the stroke over our standard.; *3. This product has a large absorption energy and a; longer effective buffer range. Therefore, when the stroke; below 250mm is used at high speed, the cushioning; performance may not meet the catalog standard.
Series Mindman MCCH
